ADAPTIVE REUSE: NATURE FRAME ARENA
ARCH 302B | ARCHITECTURAL DESIGN III | SPRING 2024
This semester’s objective was to design a community basketball facility located in the City of Pasadena in Los Angeles. The site contains a series of big box retailer but our specific project was an adaptive reuse of the existing Bed, Bath & Beyond store. The building is approximately 40,000 SF with exposed facades on the East, South and West.
EXISTING BUILDING

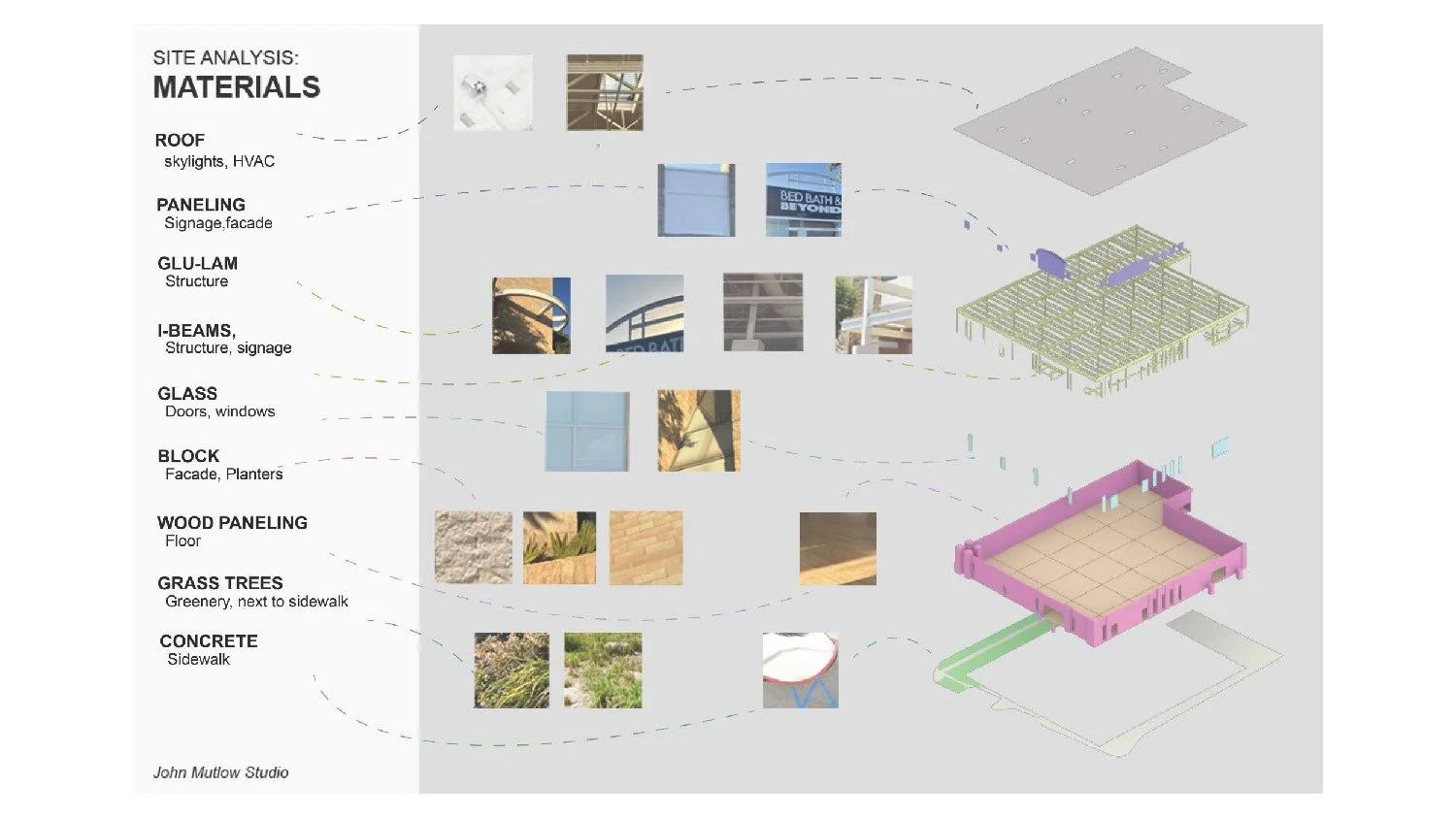

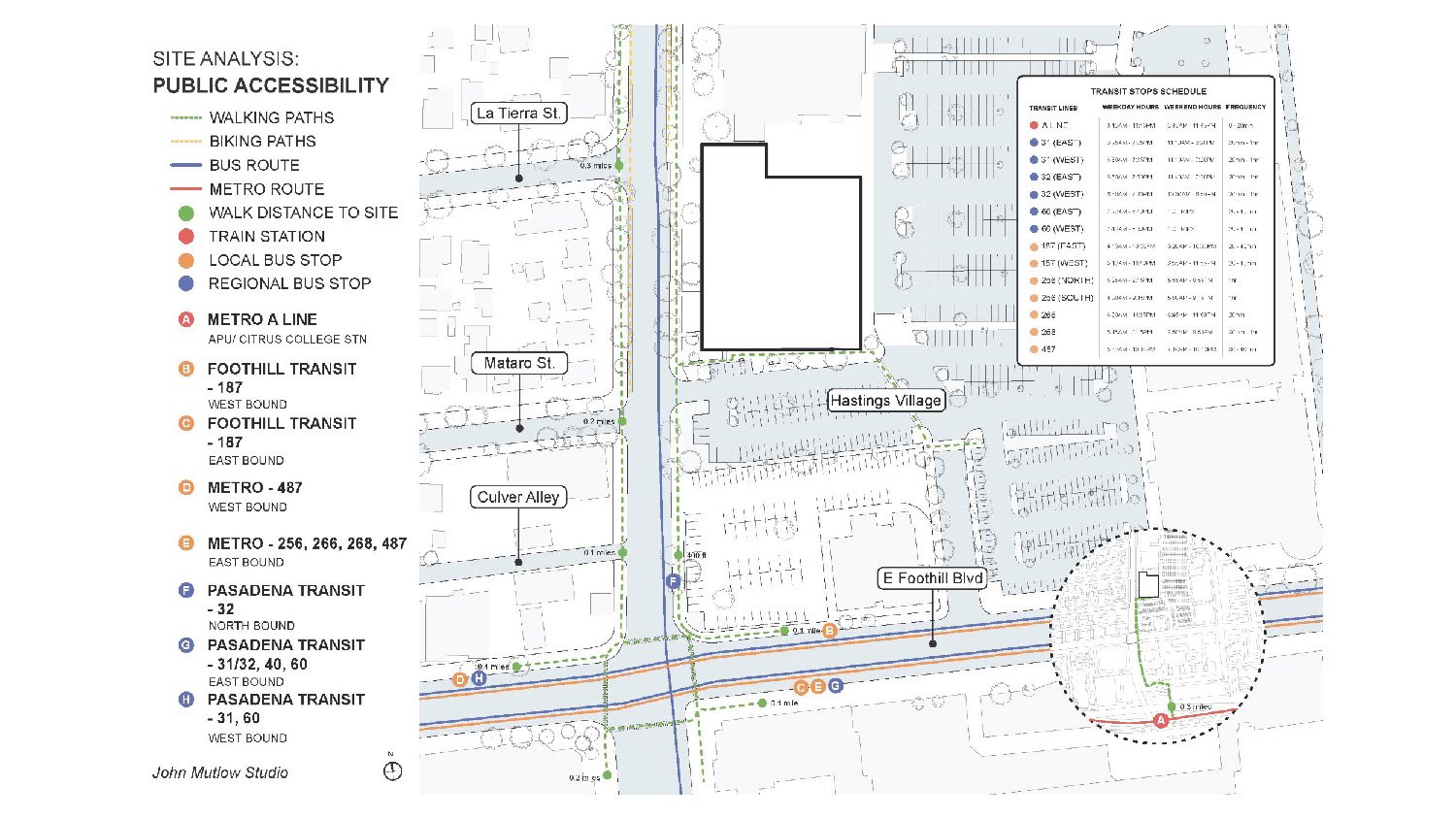

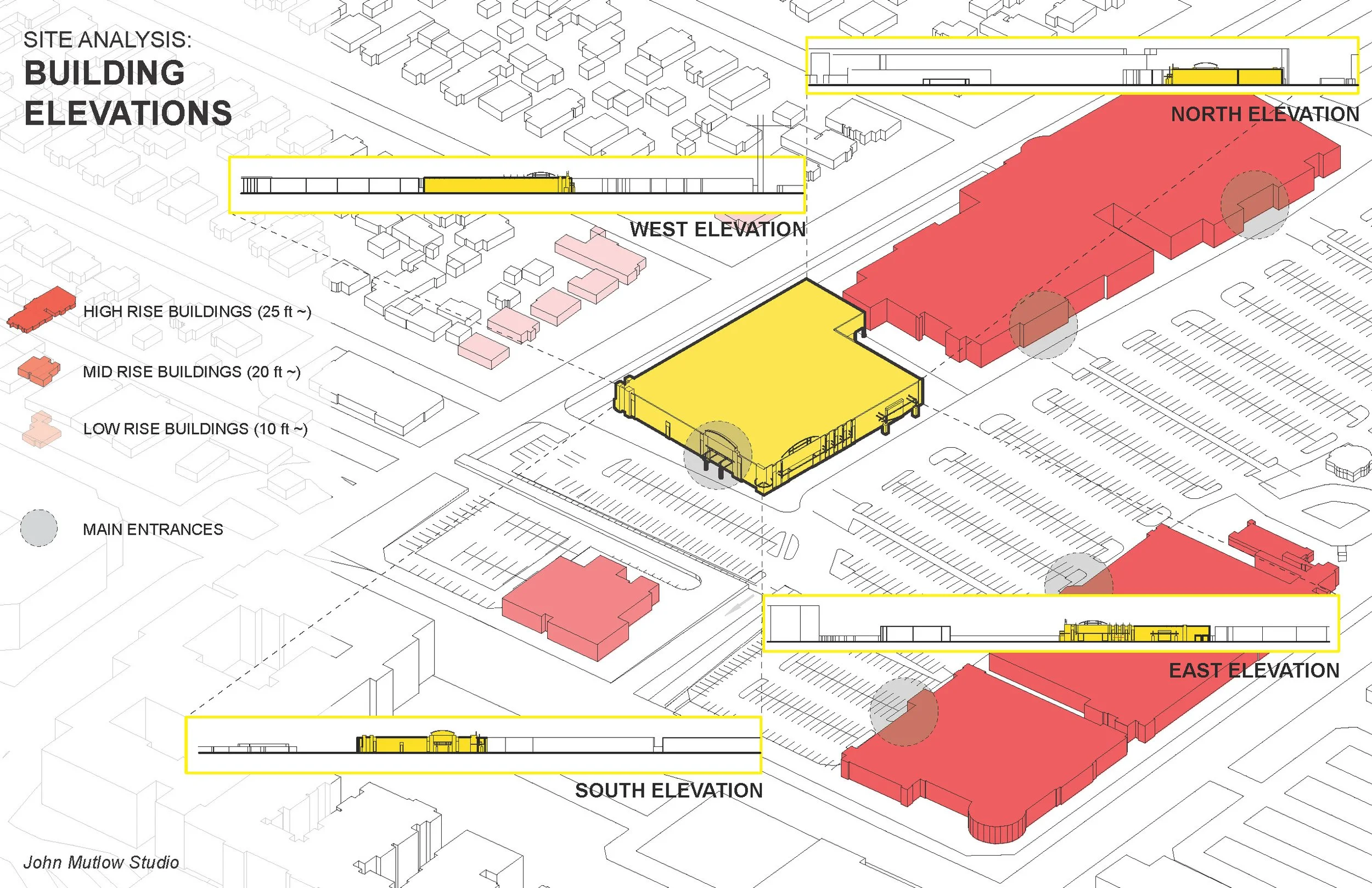

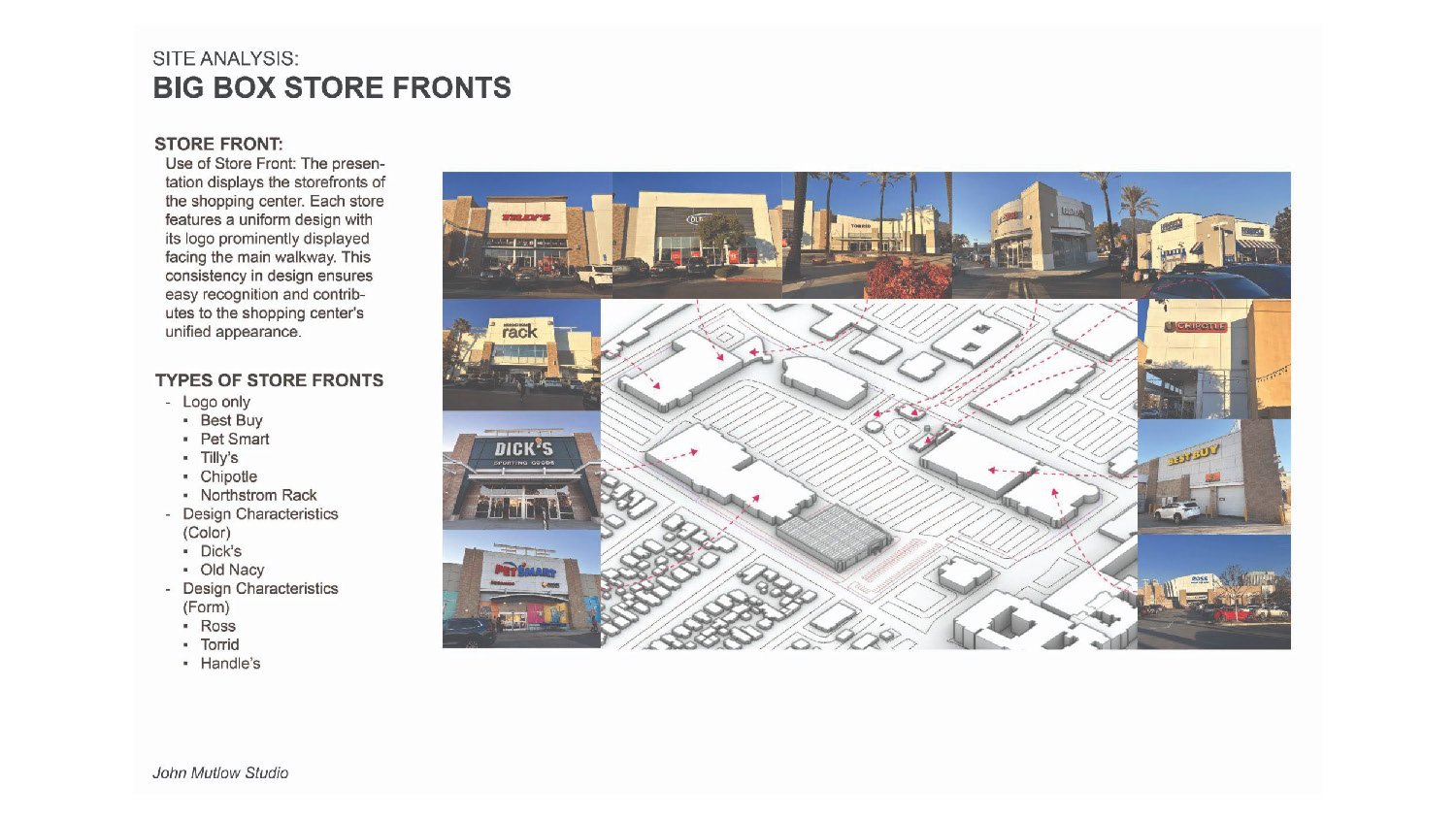

SITE ANALYSIS
COLLABORATIVE STUDIO SECTION WORK WITH PROFESSOR JOHN V. MUTLOW
CONCEPT STAGE

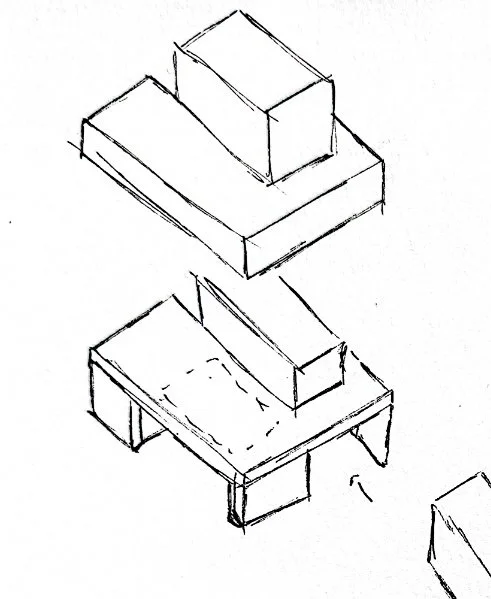

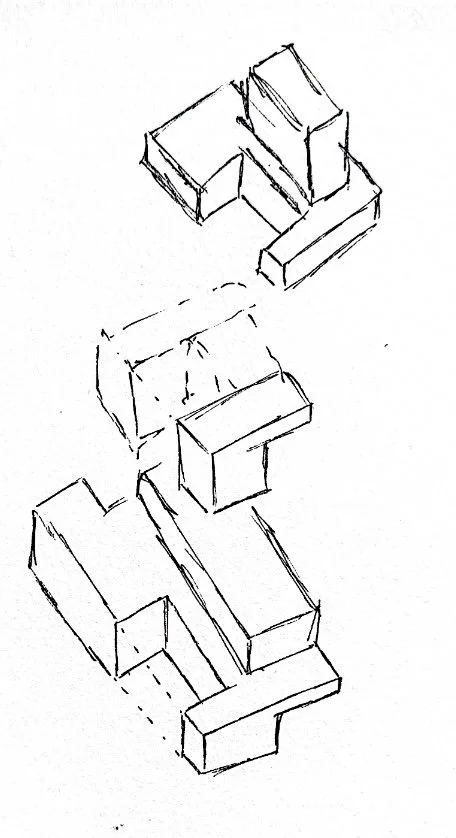

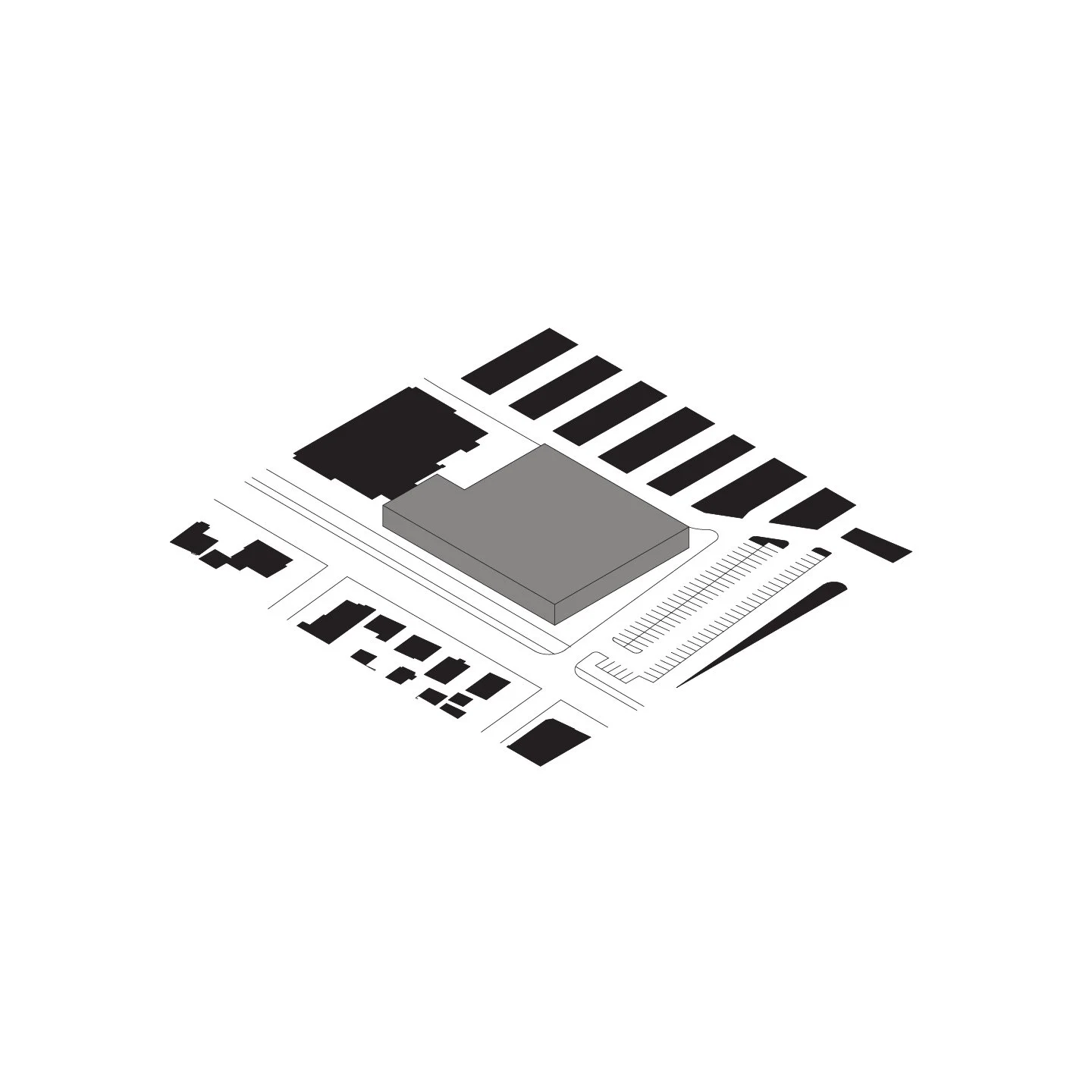

FORM FINDING DIAGRAMS
EXISTING BUILDING

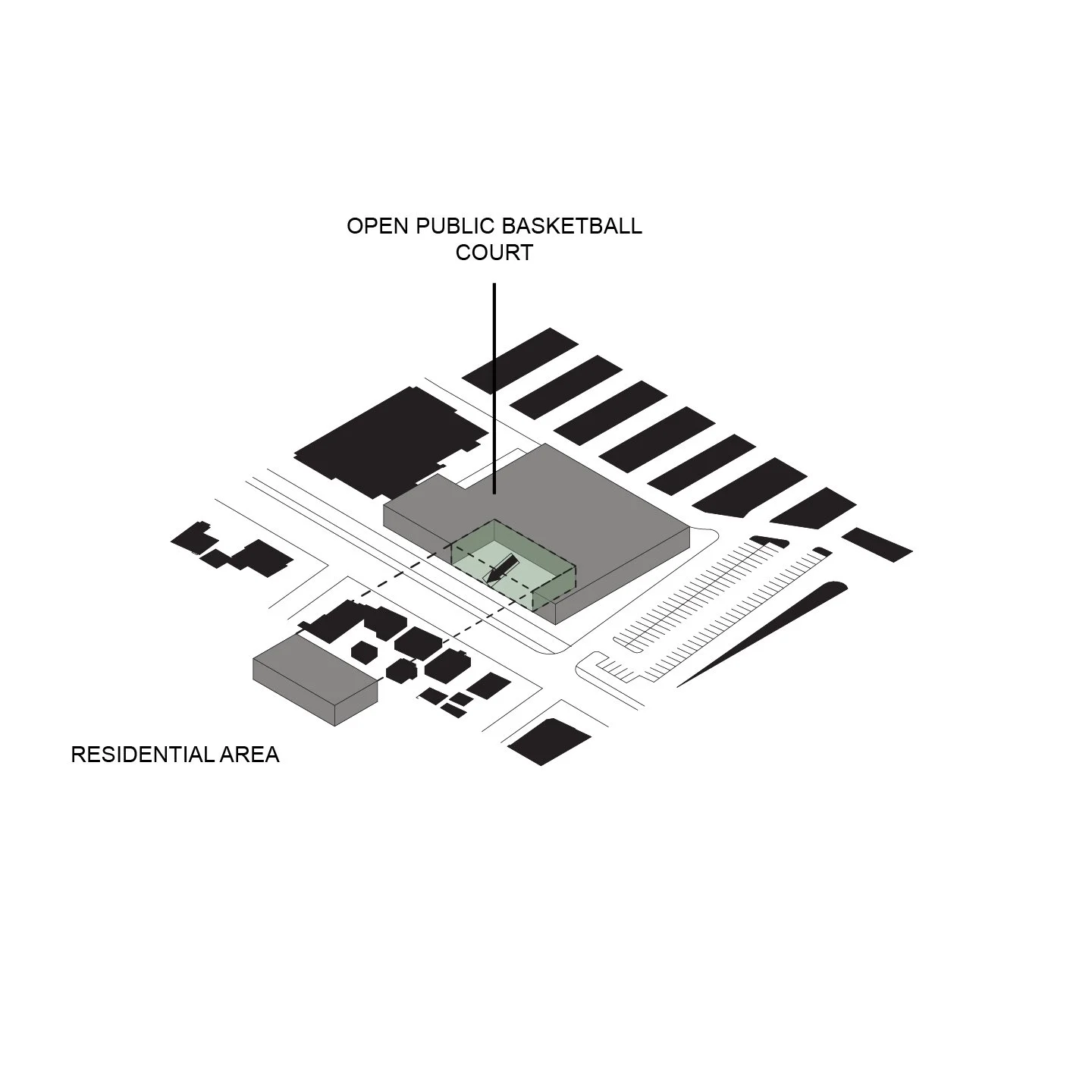

REMOVED FROM THE WEST SIDE FACING THE RESIDENTIAL NEIGHBORHOOD FOR PUBLIC BASKETBALL COURT

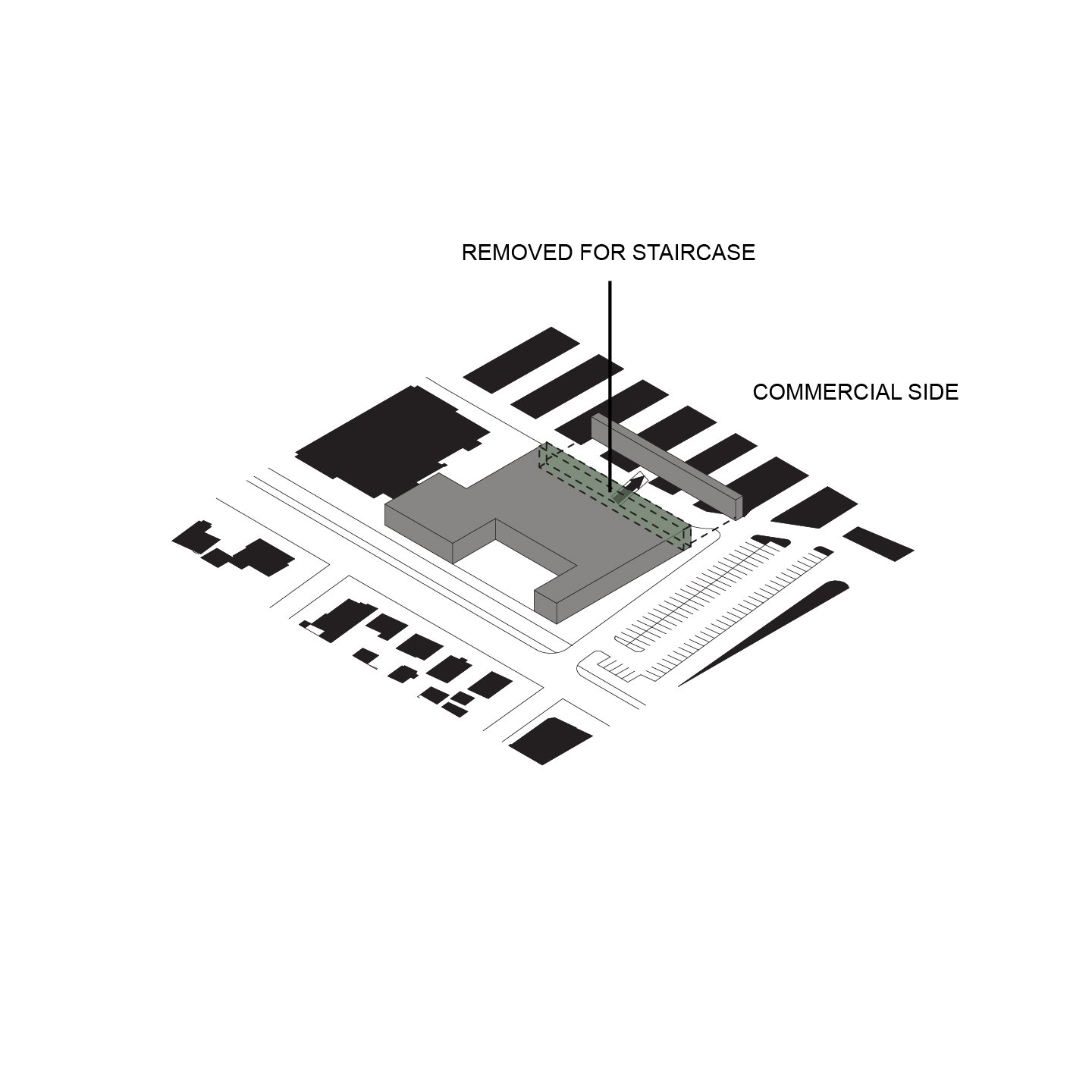

GESTURE FOR CIRCULATION FACING THE RETAIL STORES

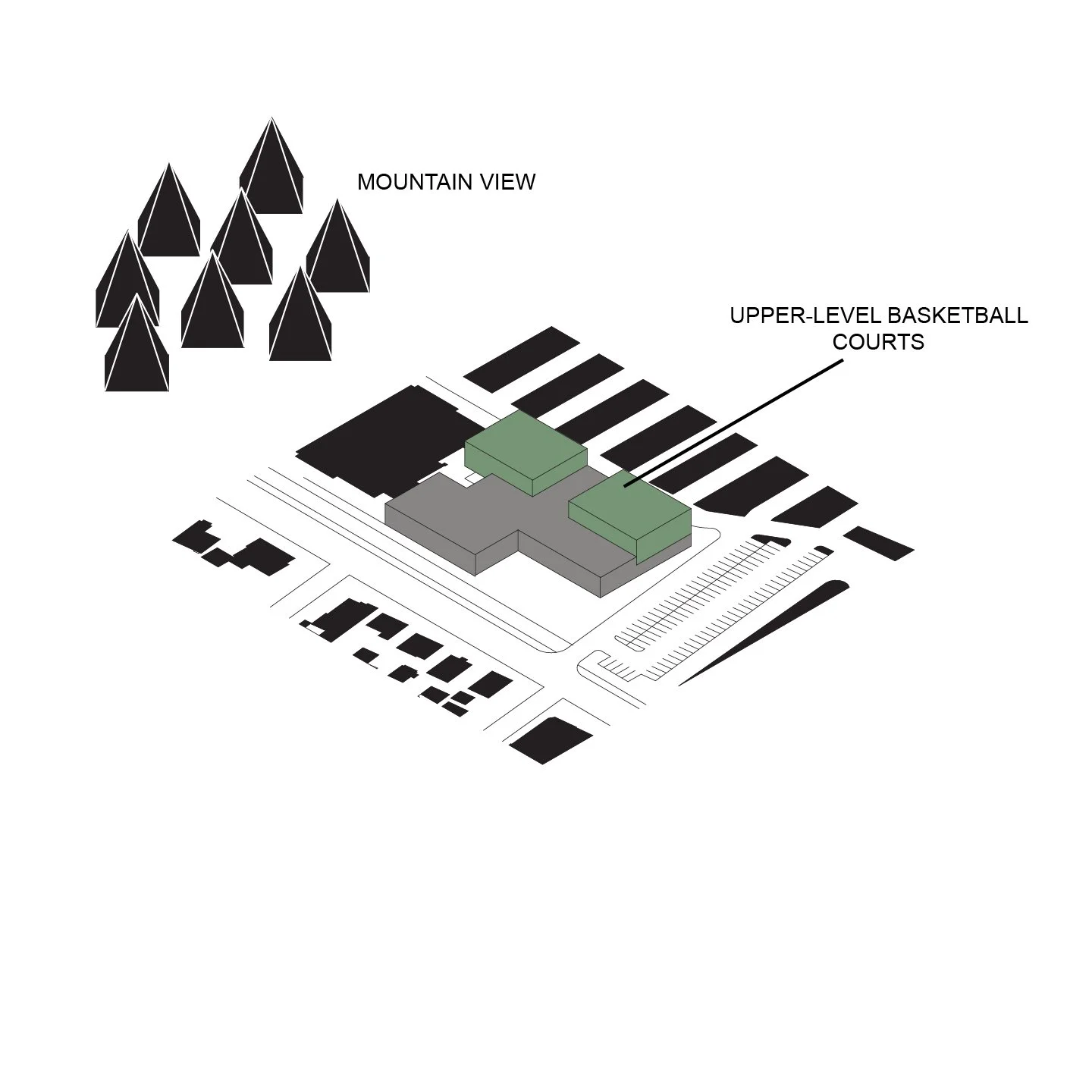

MAXIMIZING NATURAL LIGHT, ENHANCING VIEWS, SAVING SPACE ON GROUND LEVEL THUS THE BUILDING DOESN’T CENTER AROUND BASKETBALL PROGRAM
INTEGRATING GREEN SPACE CONSIDERING THE EXISTING SITE AND NARROW SHAPE FOR PASSIVE-COOLING
DESIGN

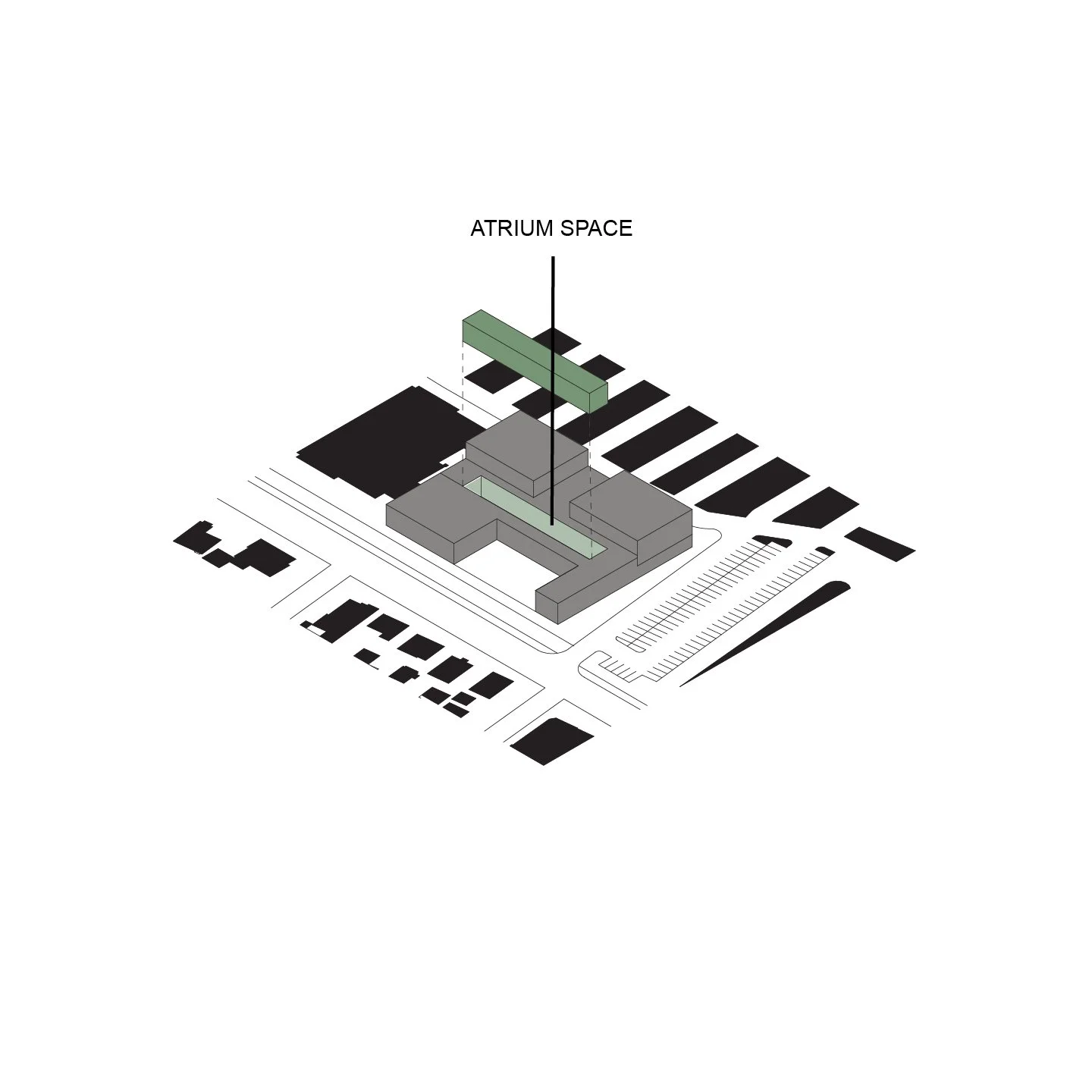

I intentionally kept the roof flat to keep the emphasis on my atrium, grand staircase and the courts on the roof concept. The boxy, rectilinear nature of my project also blends easily with the existing context, respecting the existing building.

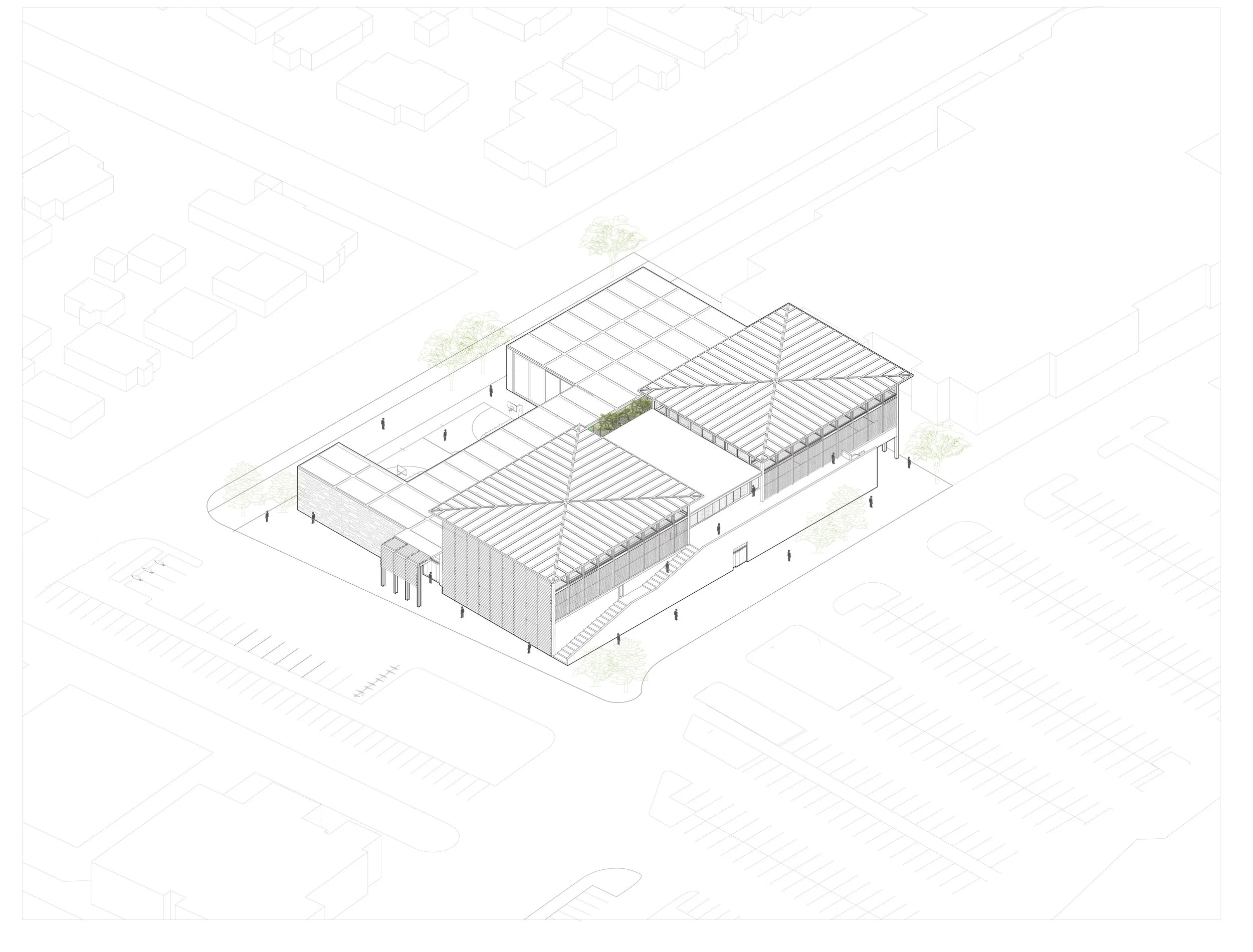

ISOMETRIC VIEW

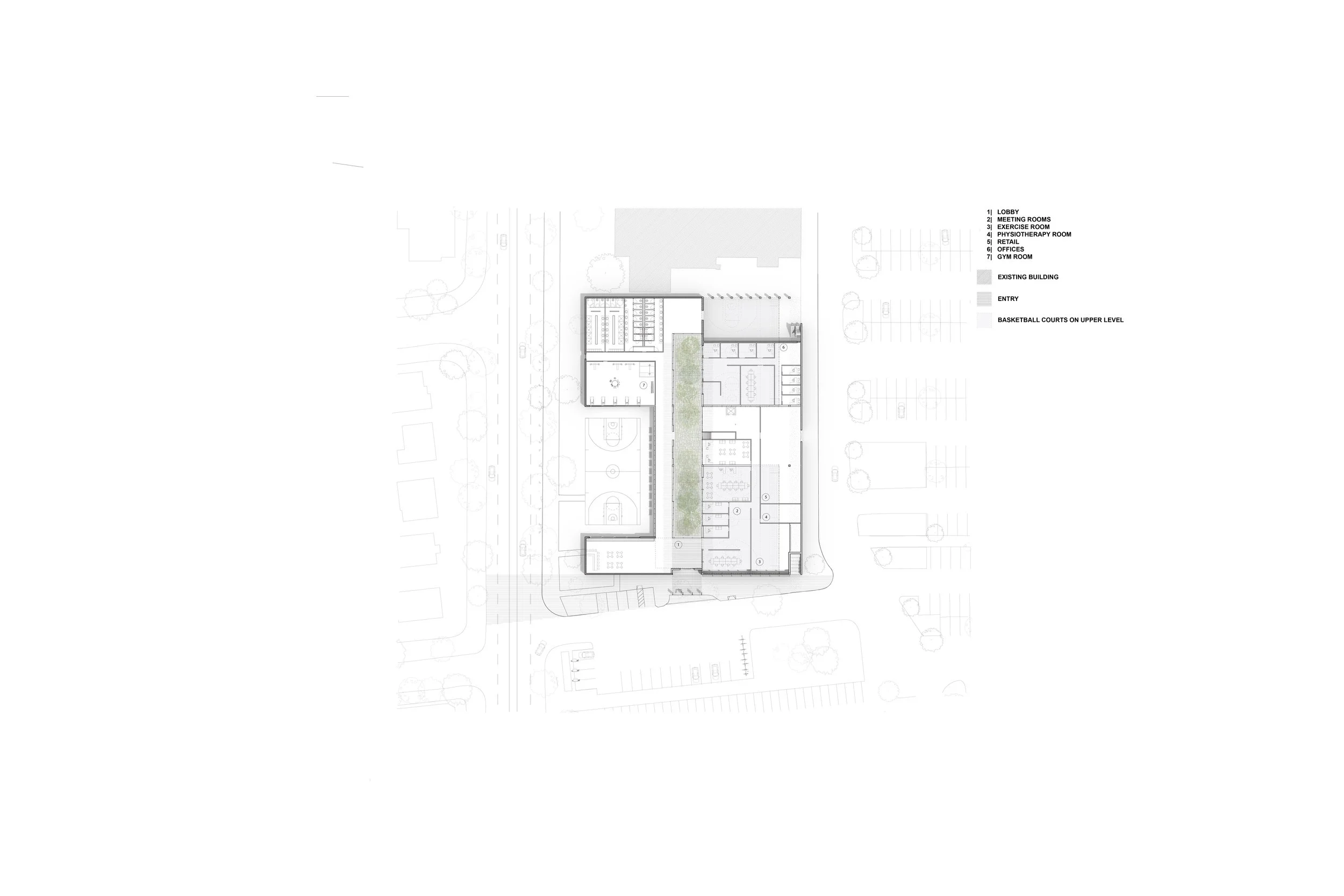

GROUND FLOOR PLAN

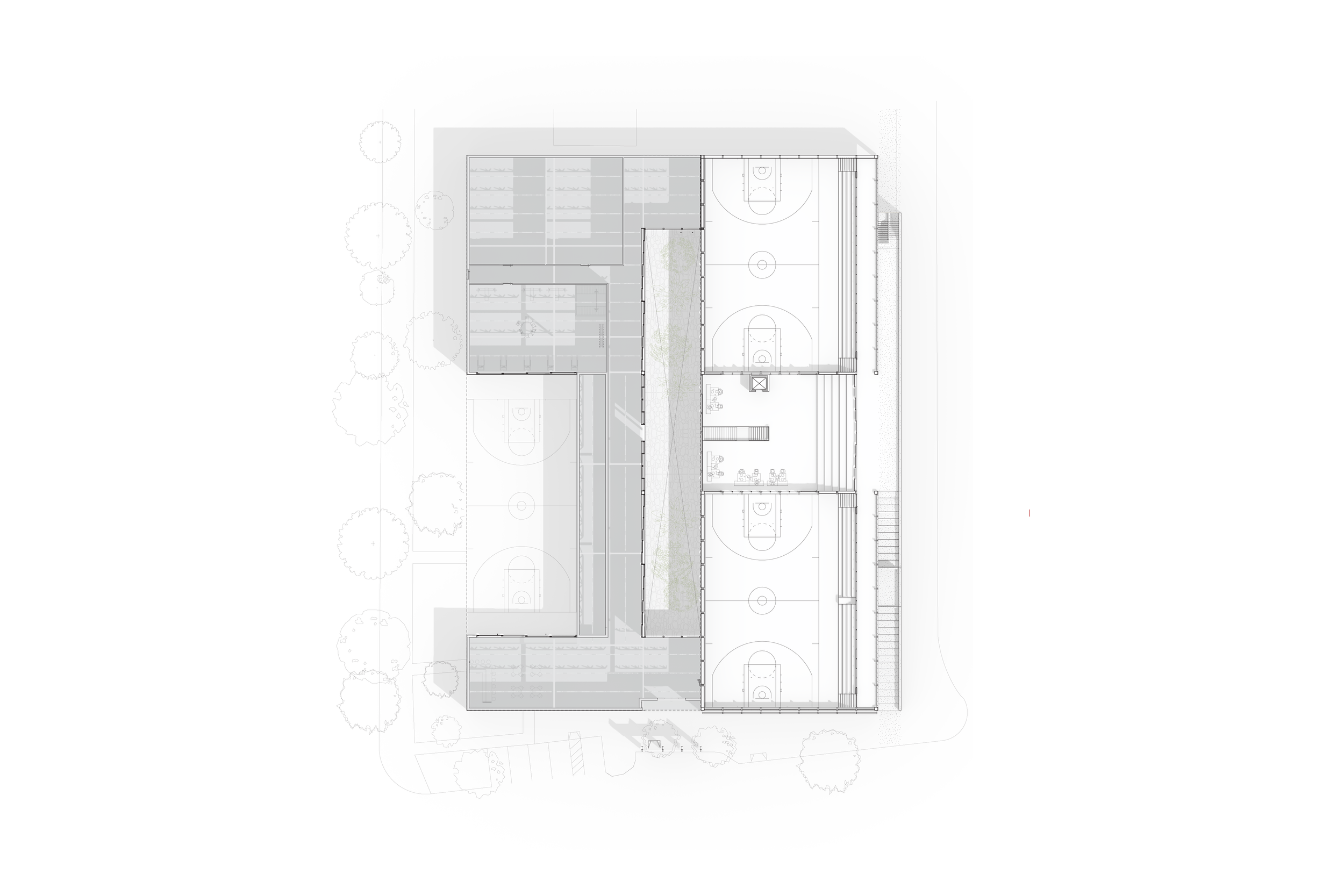

SECOND FLOOR PLAN

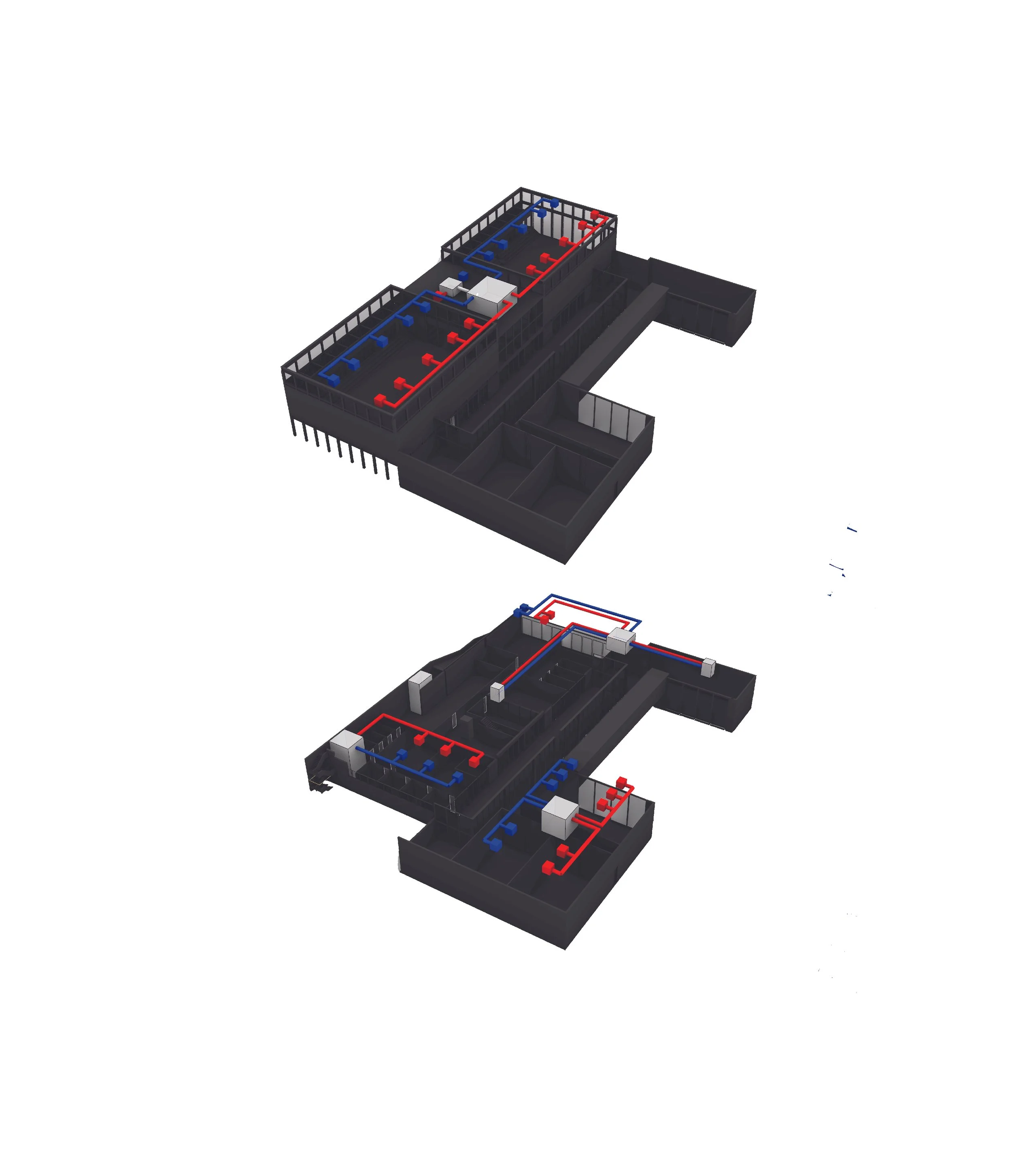

HVAC DIAGRAM

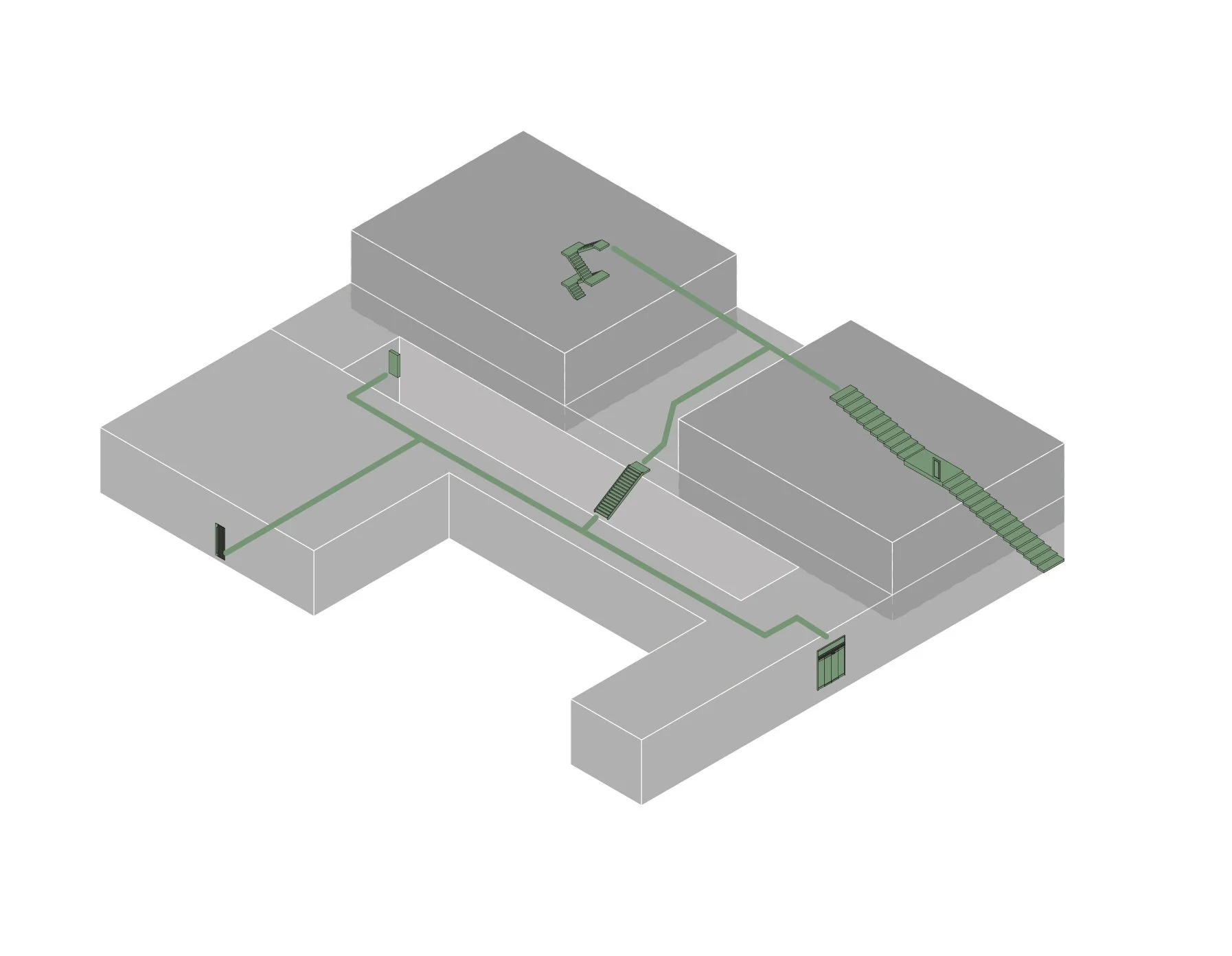

EGRESS / CIRCULATION DIAGRAM

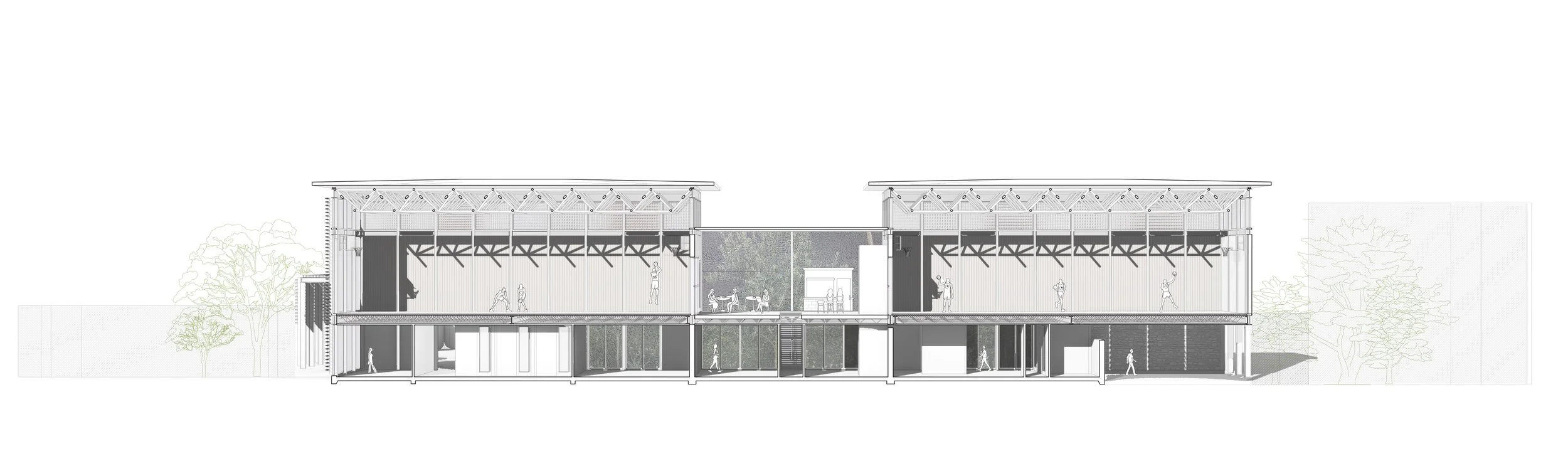

EAST FACING LONGITUDINAL SECTION

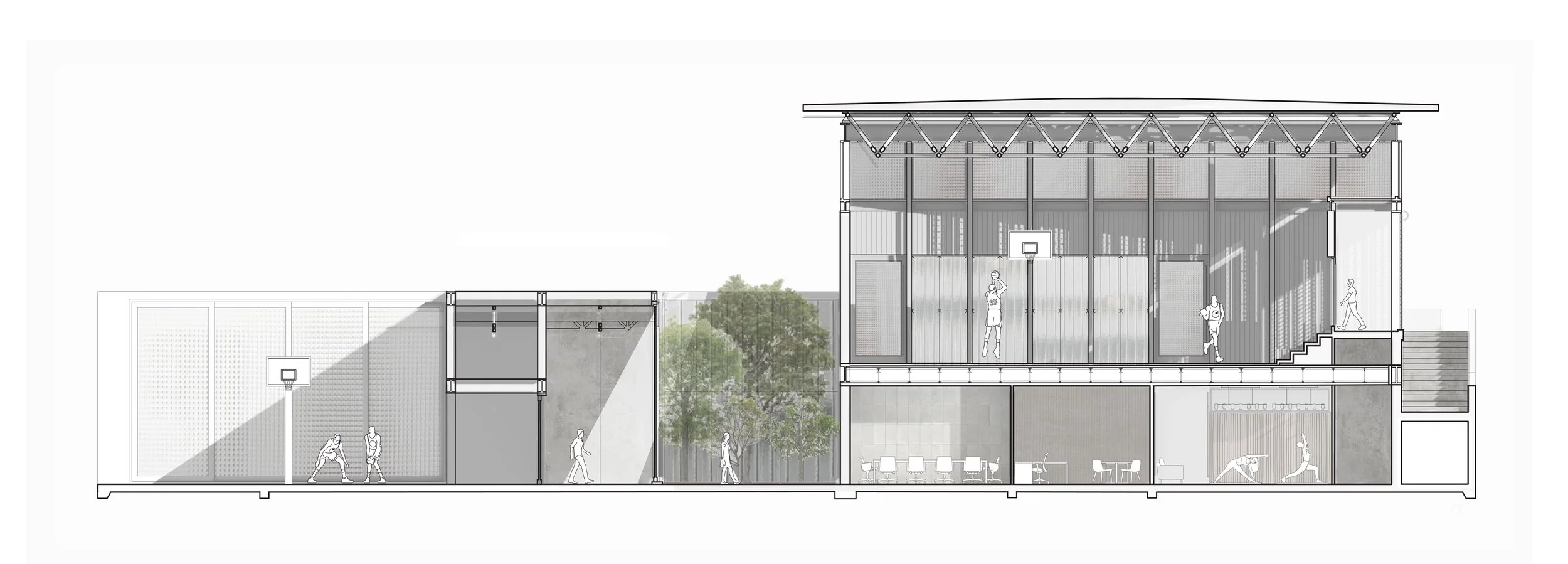

NORTH FACING SHORT SECTION

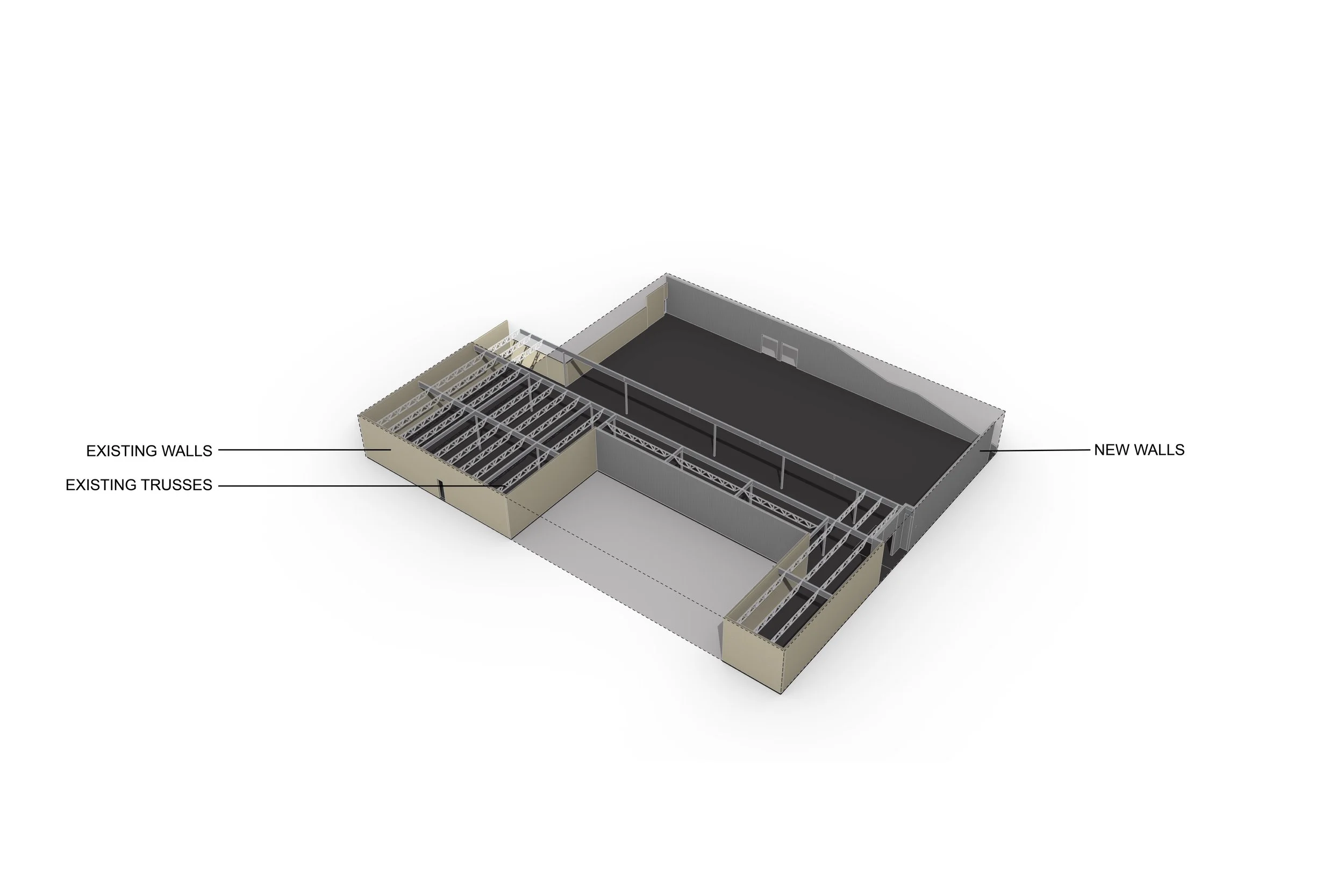

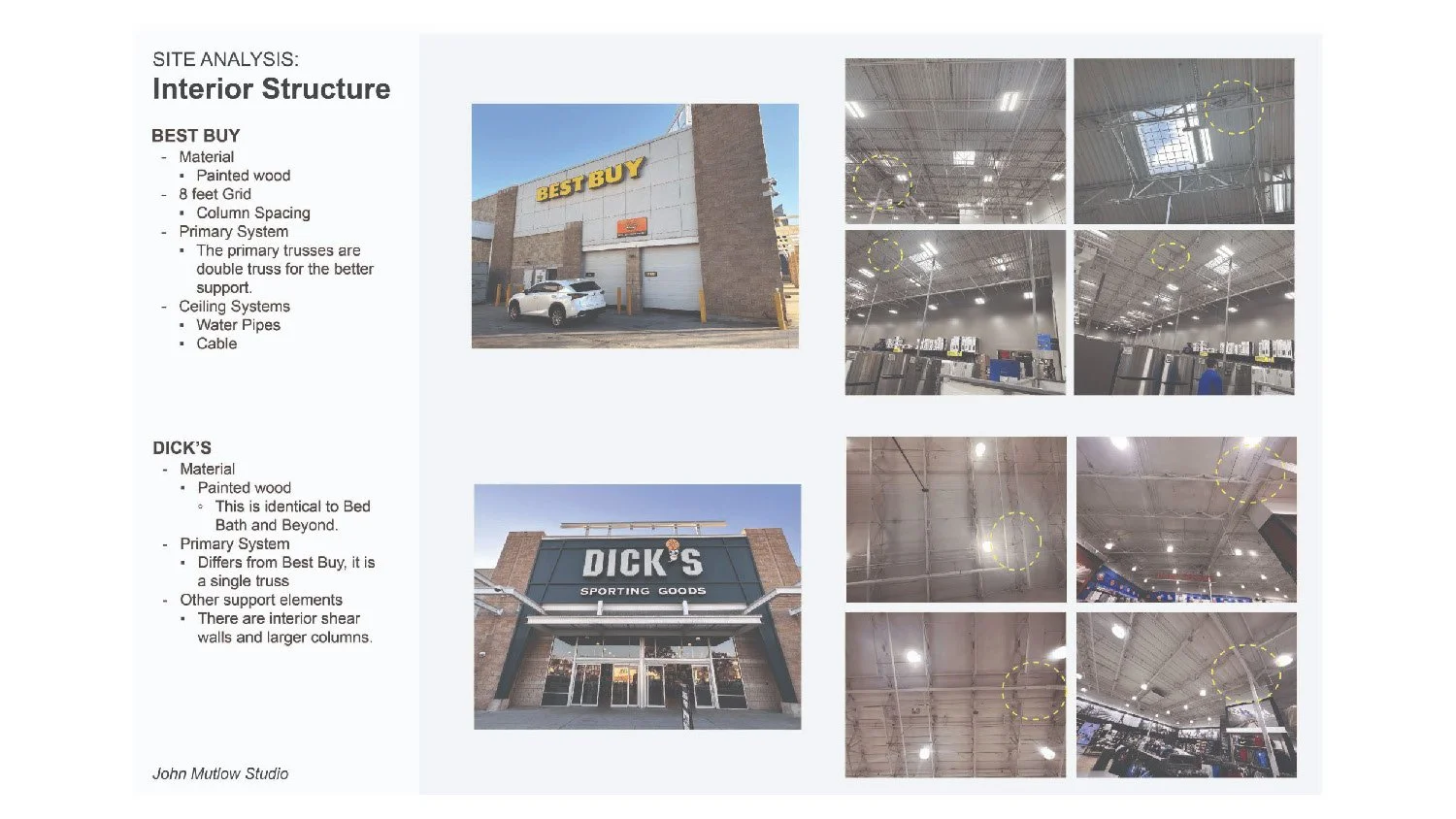

ADAPTIVE REUSE EXISTING STRUCTURE
The outdoor hallway space creates a blur between interior and exterior space, exposing the raw steel structure of the building. The hallway is covered with perforated vertical shading panels.

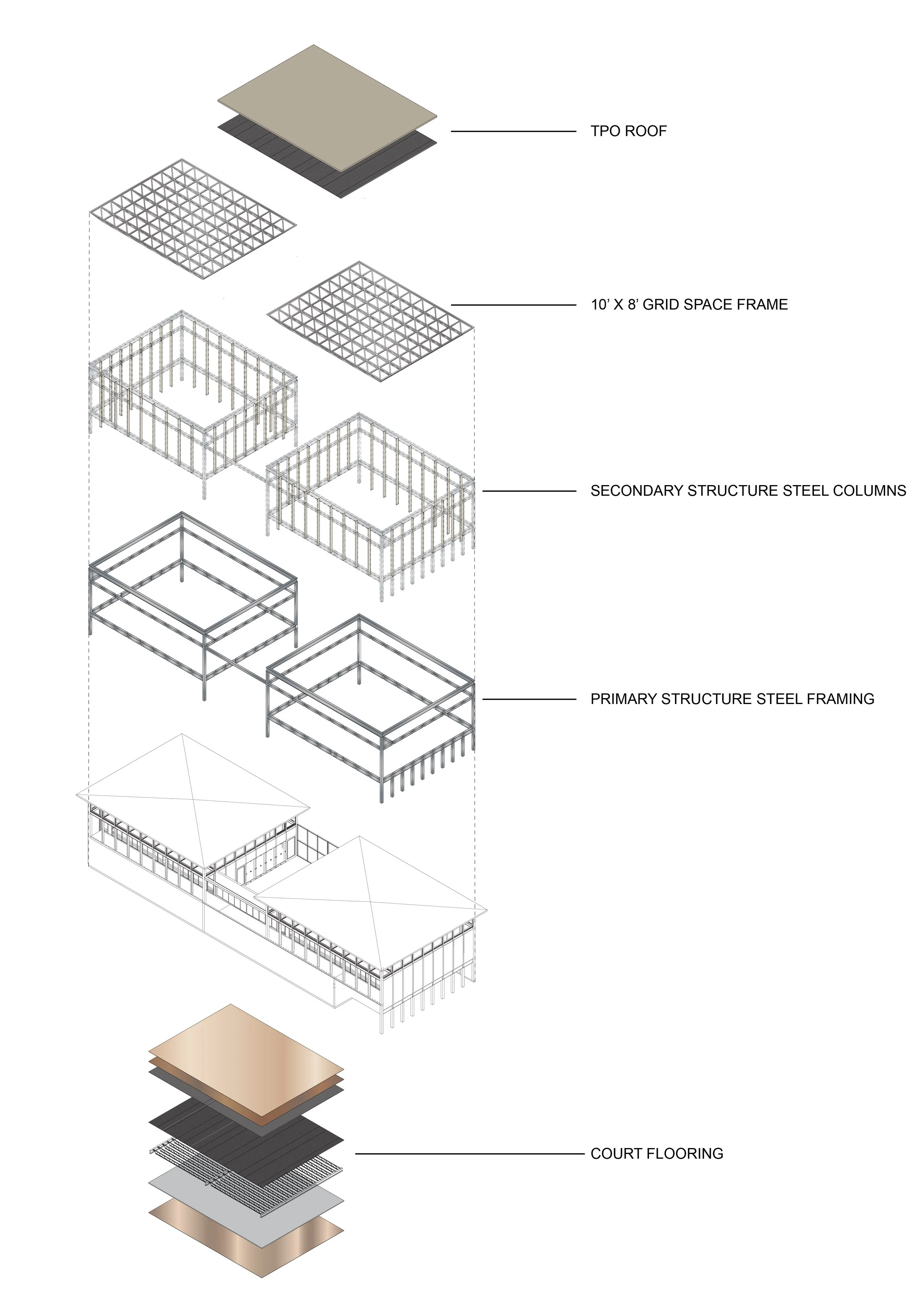

BASKETBALL COURT STRUCTURE DIAGRAM

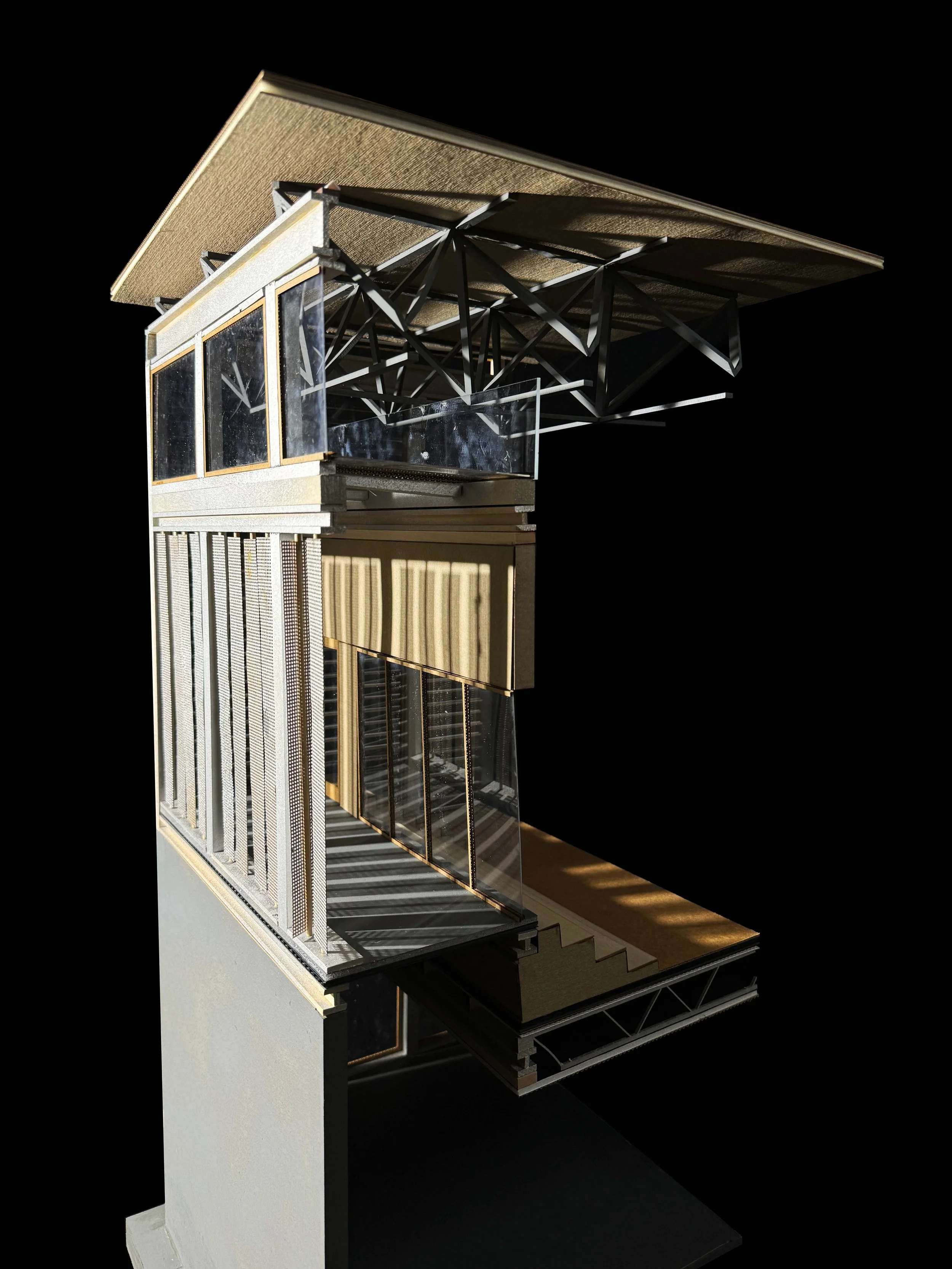

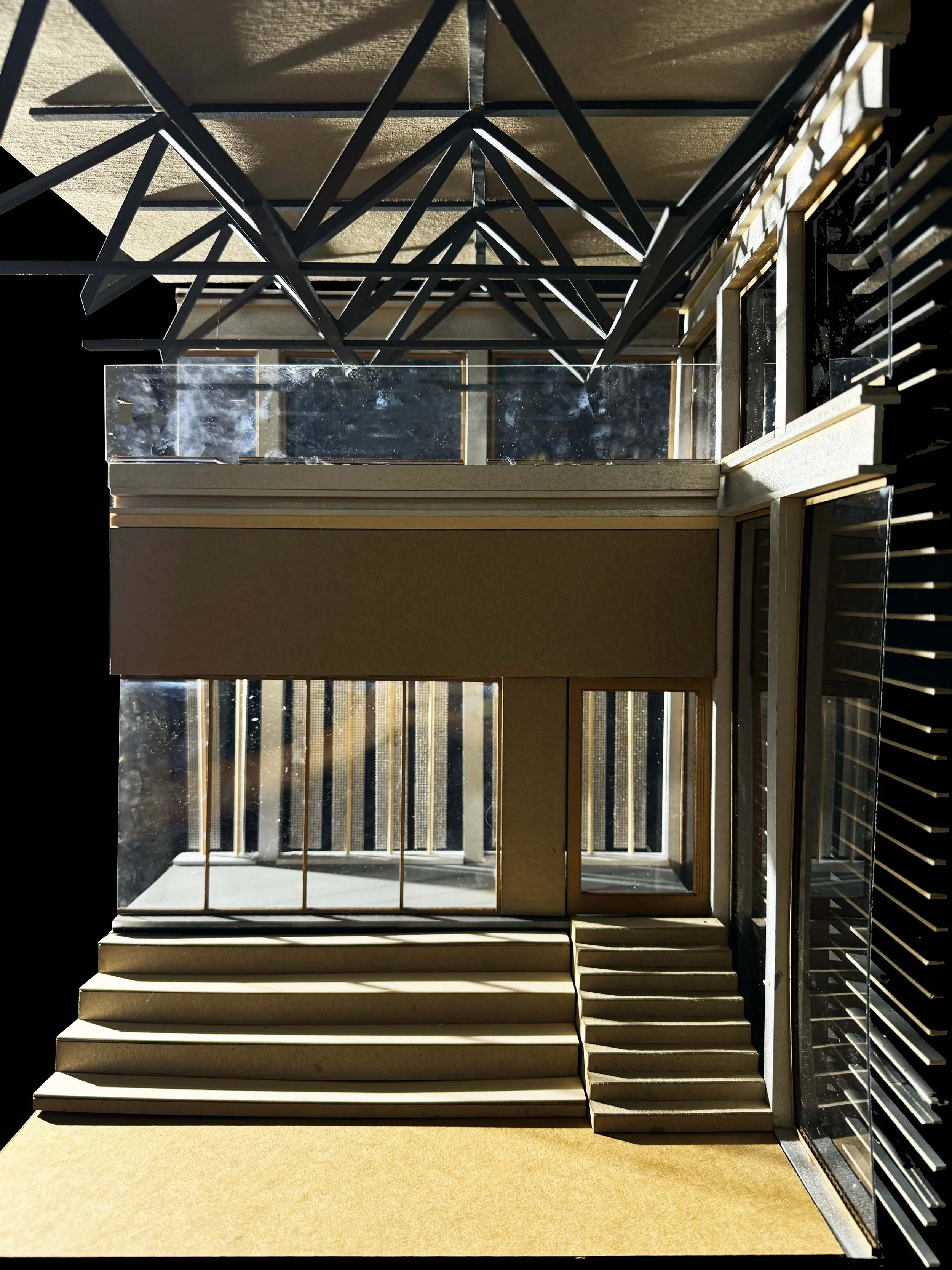

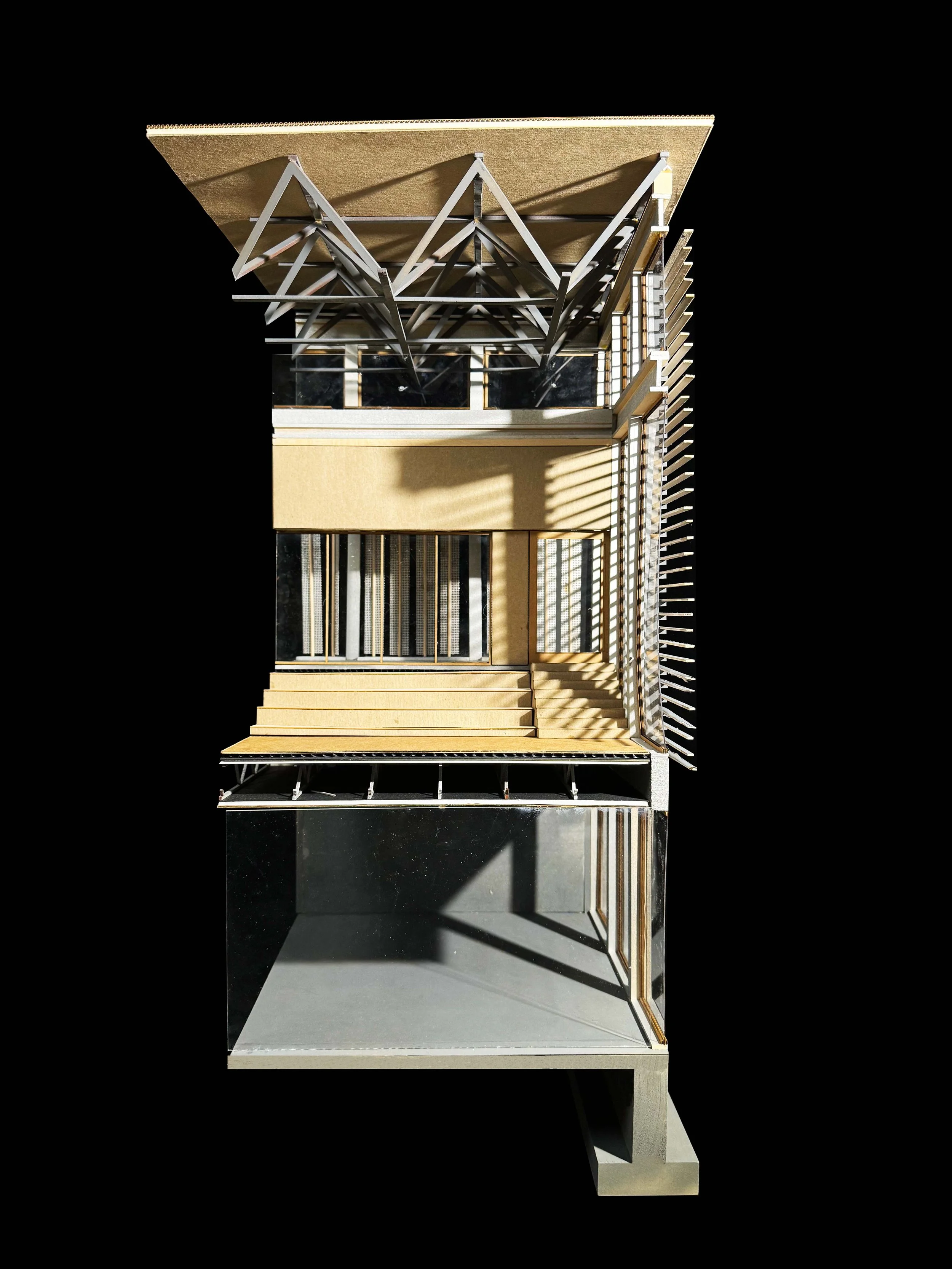

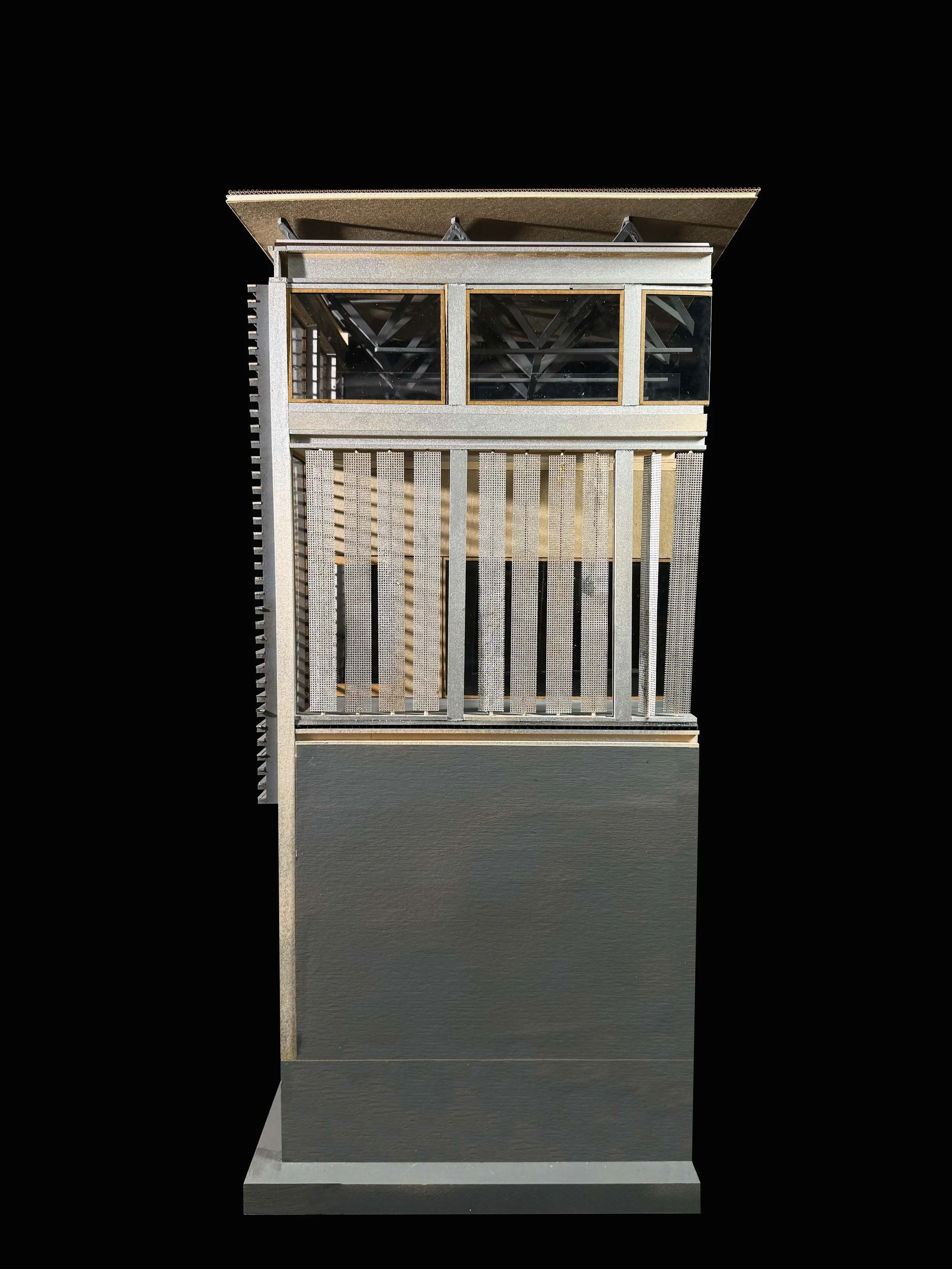

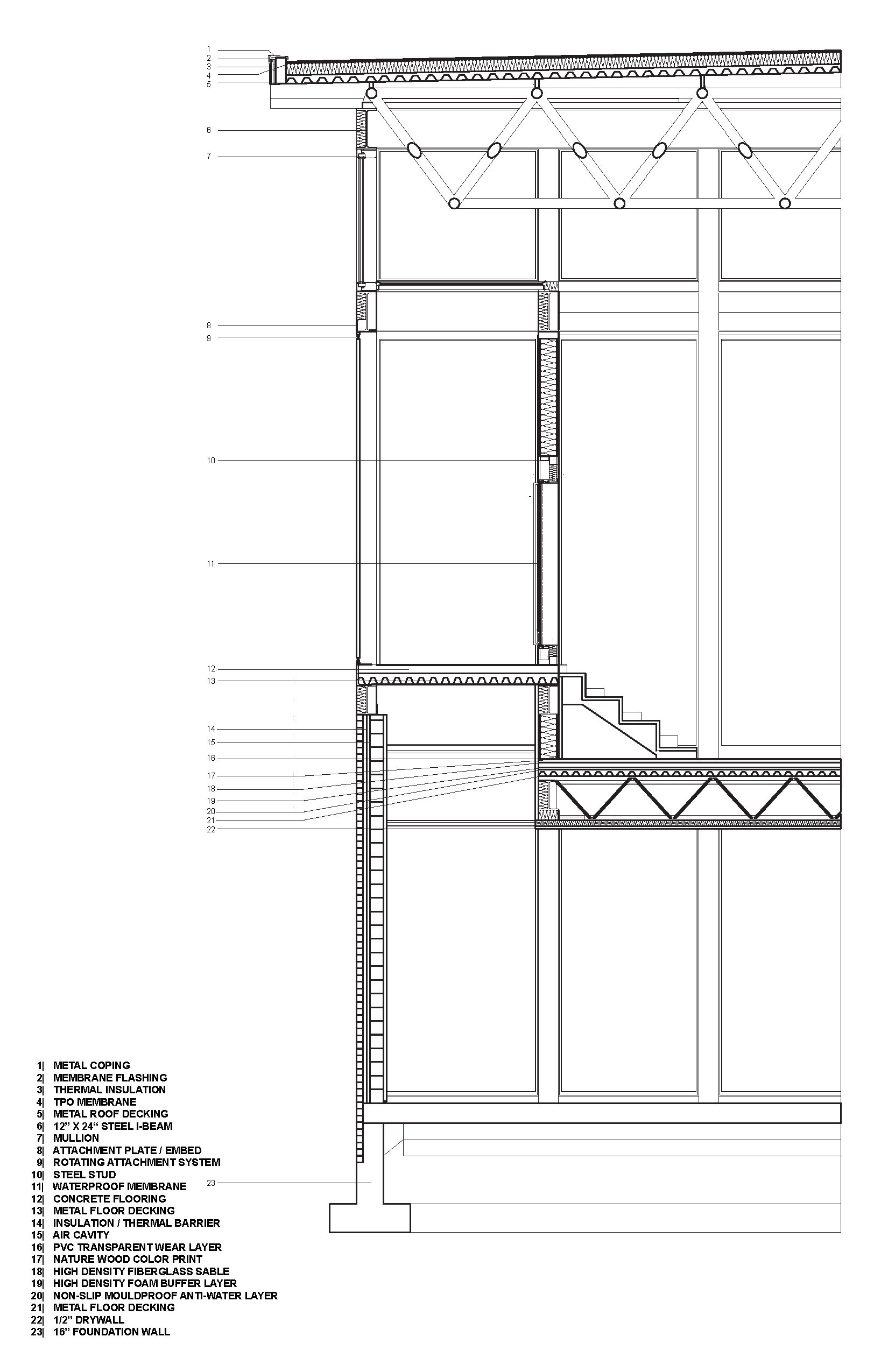

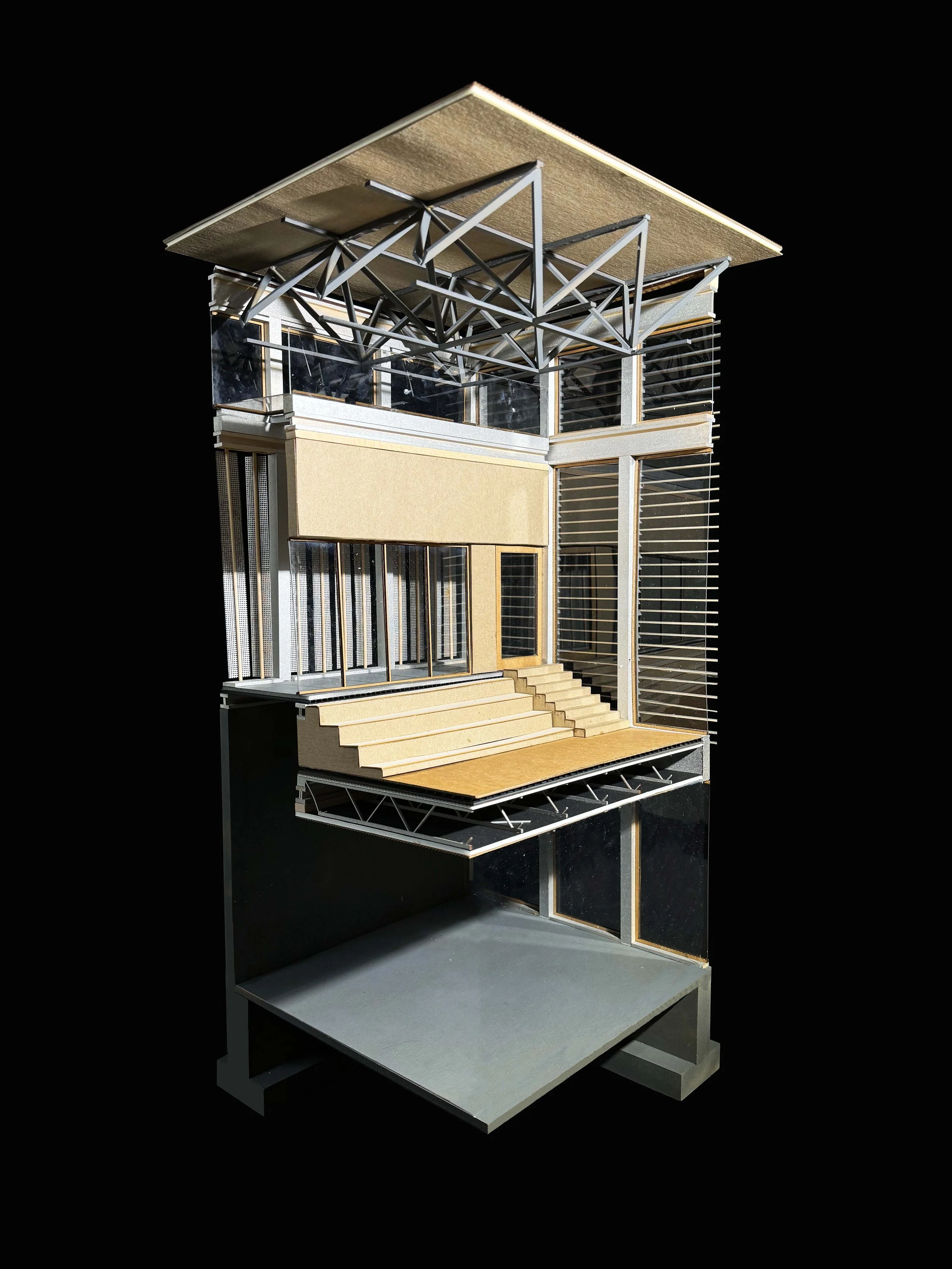

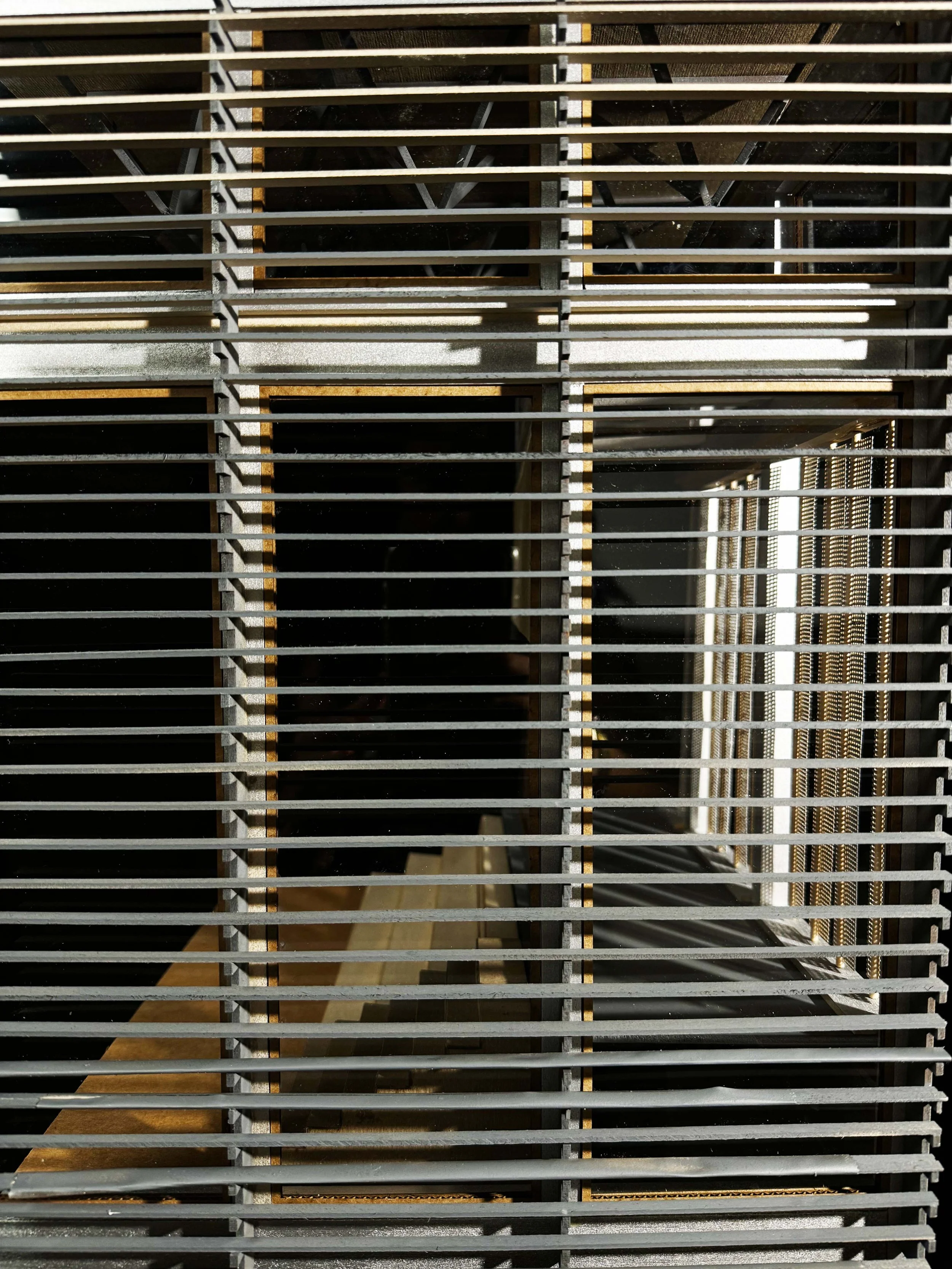

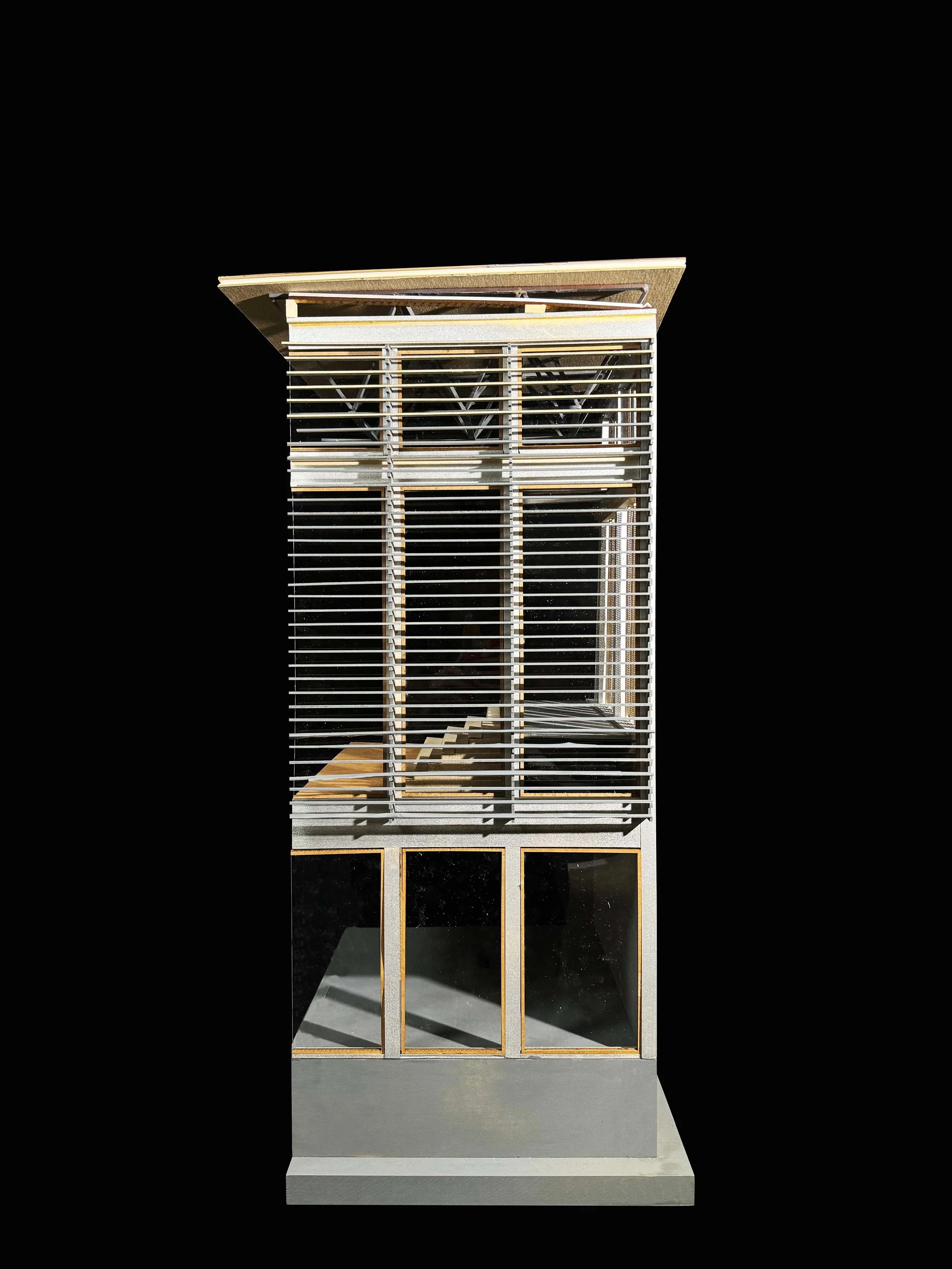

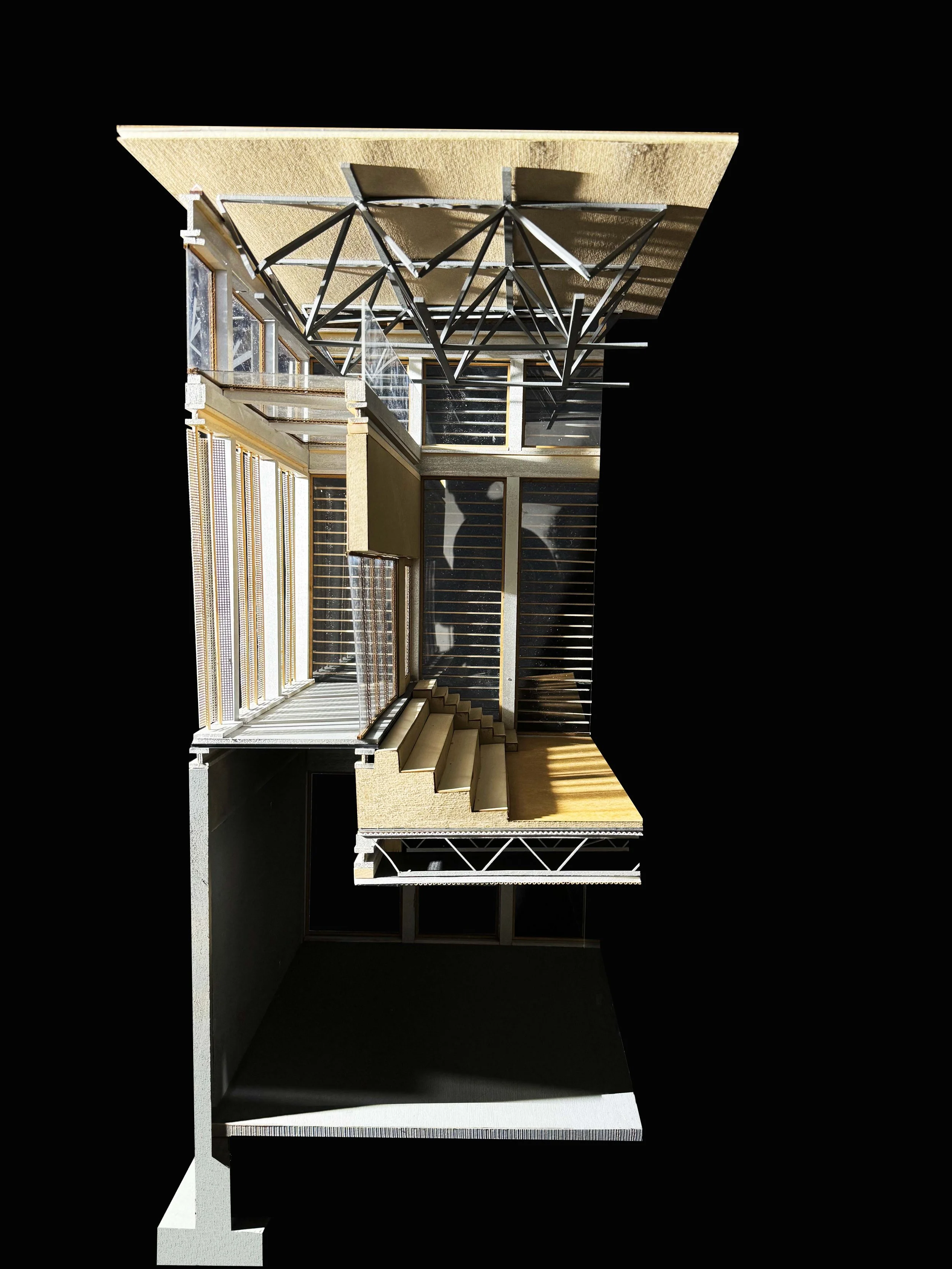

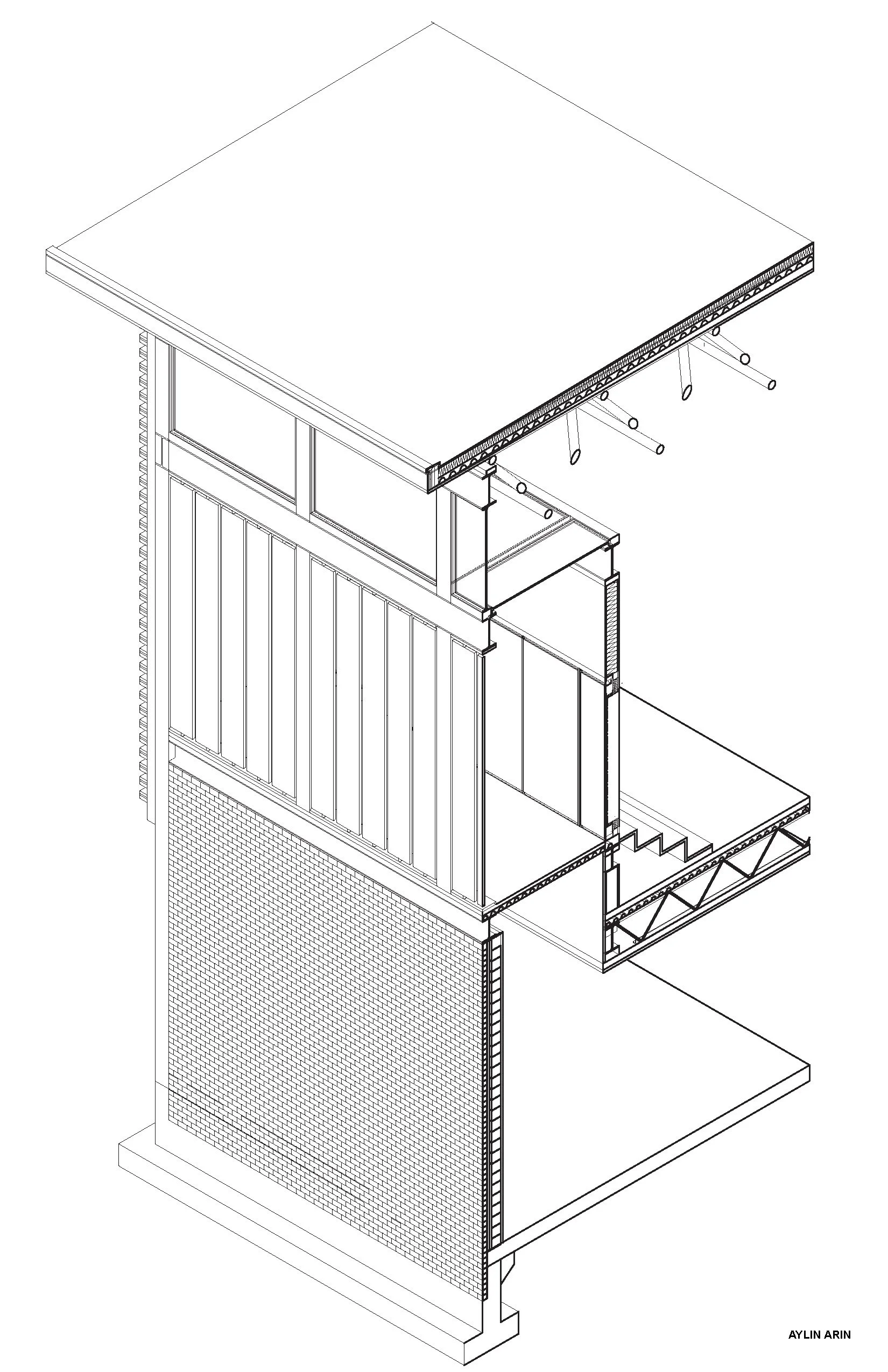

CHUNK DETAIL DRAWINGS

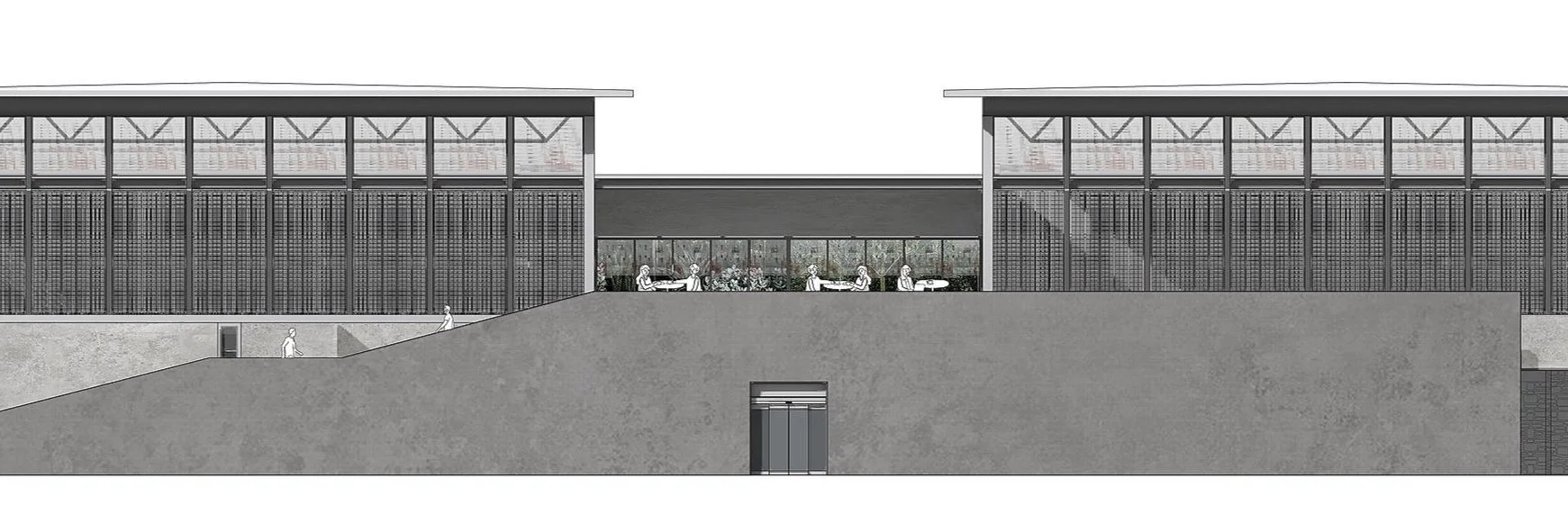

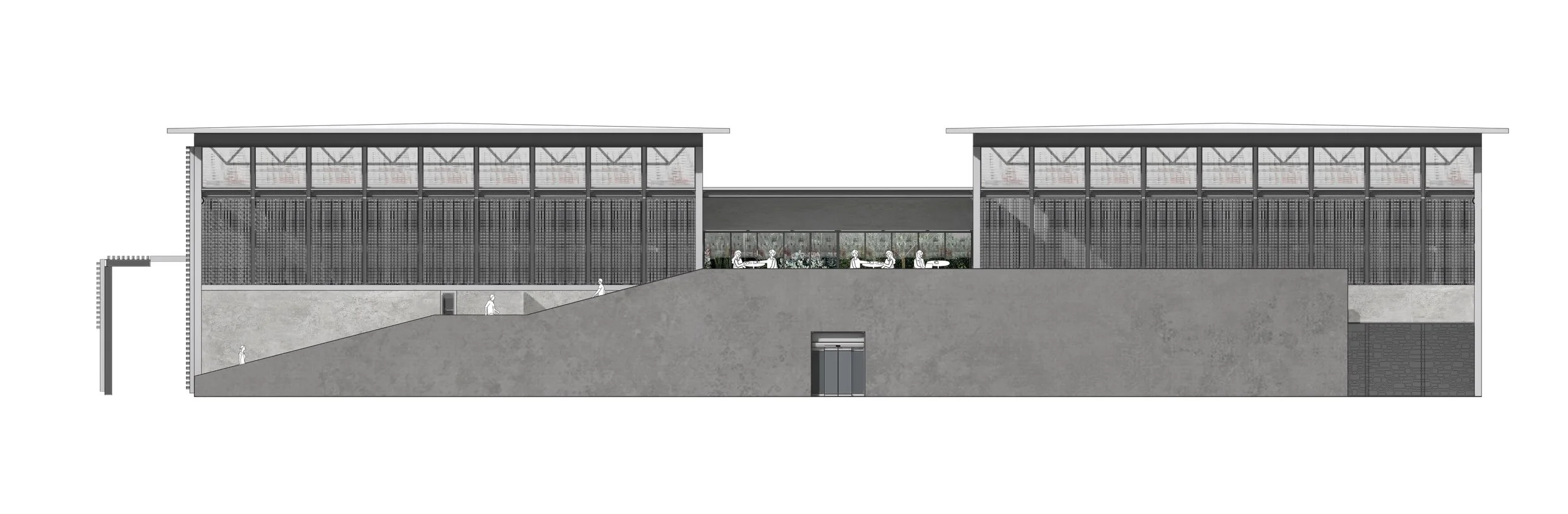

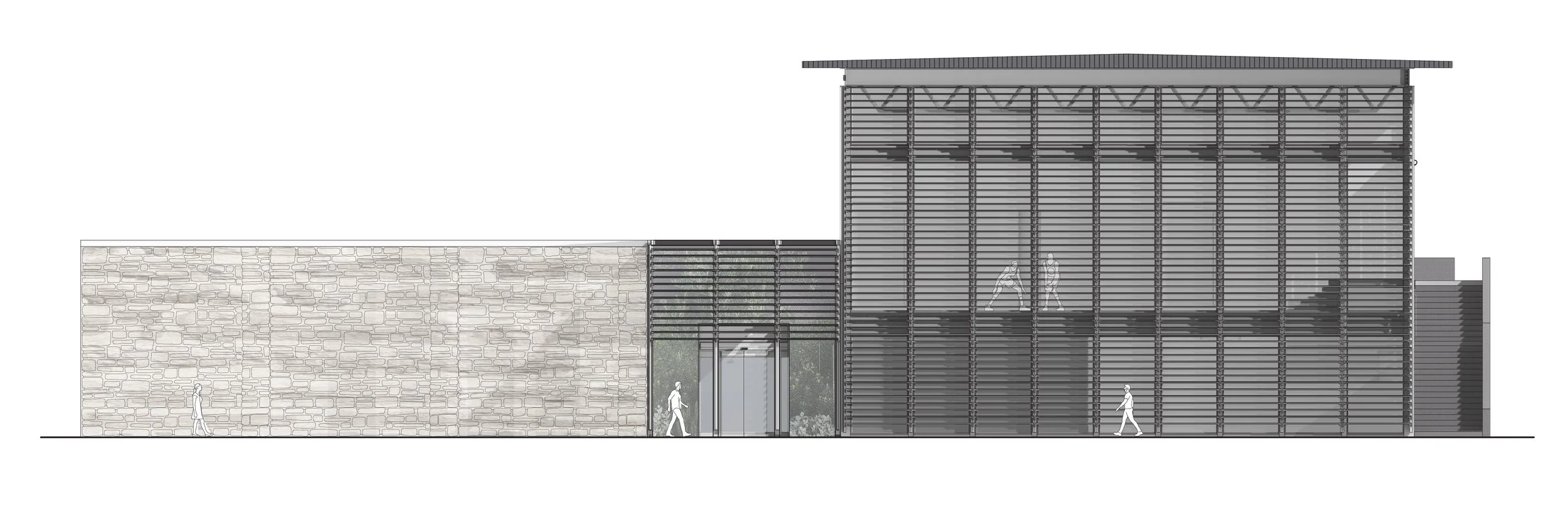

EAST ELEVATION
SOUTH ELEVATION
