COFFEE MACHINE “THE ICON”
ARCH 202B | ARCHITECTURAL DESIGN II | SPRING 2023
The aim was to design a prototype for an iconic concession stand for the 2028 Olympics in Los Angeles. The concession stand would serve as both a food service venue and a visual marker for event sites across the city. The stand must be approximately 300 to 400 square feet with a maximum height of 20 feet.
In the initial stage, based on the book “Learning from Las Vegas” by Robert Venturi and Denise Scott Brown, each student was given two architectural landmarks.
THE DUCK: SPECIAL BUILDING THAT IS A SYMBOL
HOLLYWOOD FLOWER POT

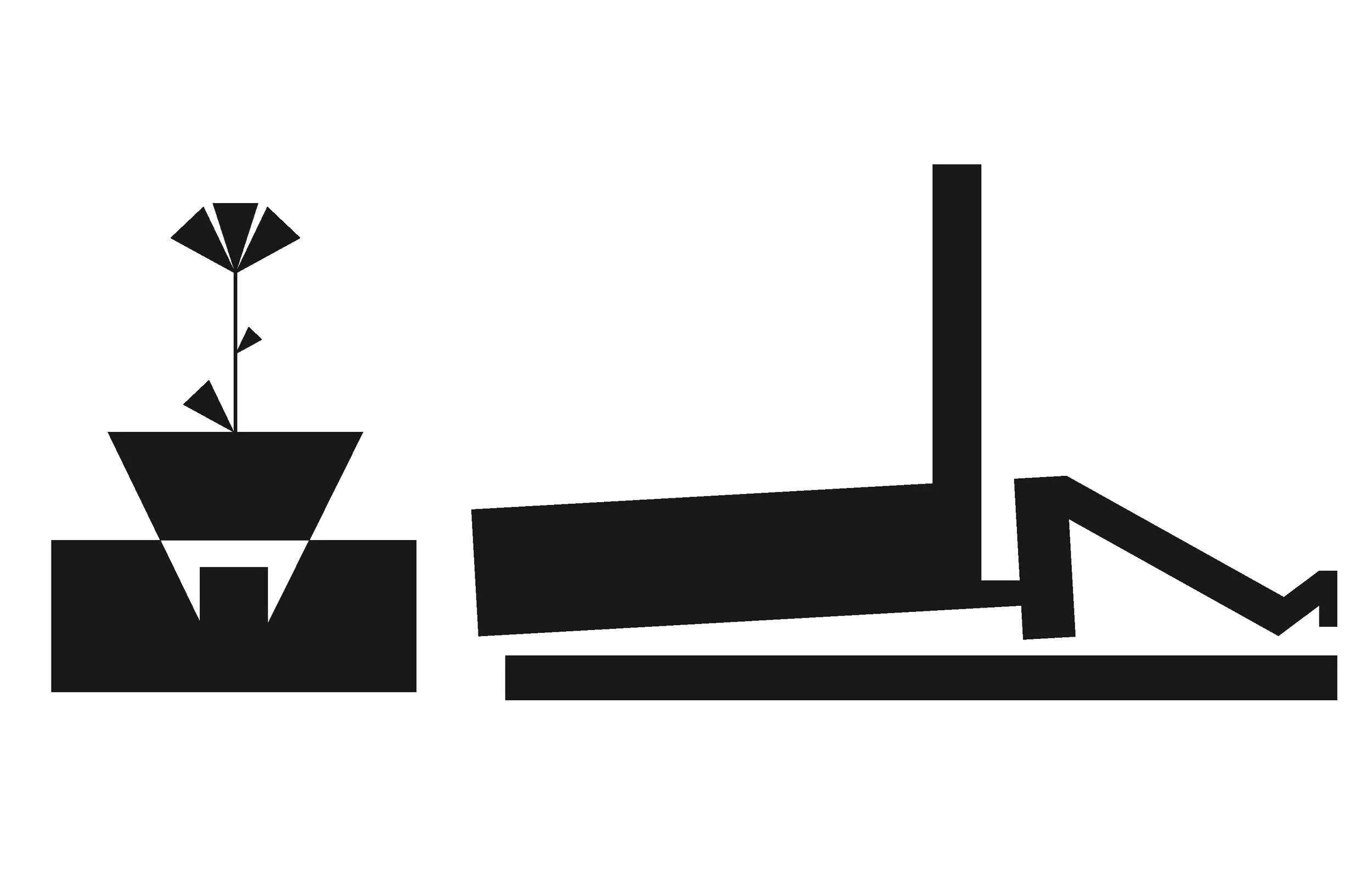

TWO-DIMENSIONAL ABSTRACT ICONS BASED ON THE CHOSEN DUCK AND SHED
THE DECORATED SHED: SHELTER THAT APPLIES SYMBOLS
JOHNIE’S COFFEE SHOP
Students then were asked to create their own icons based on the precedents.

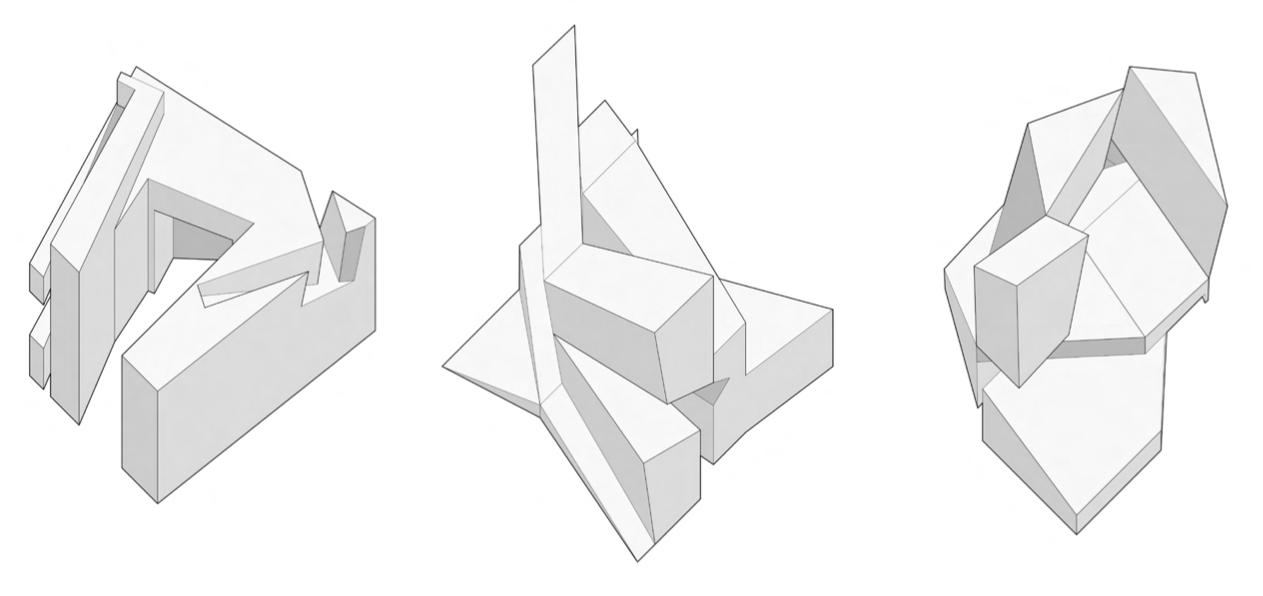

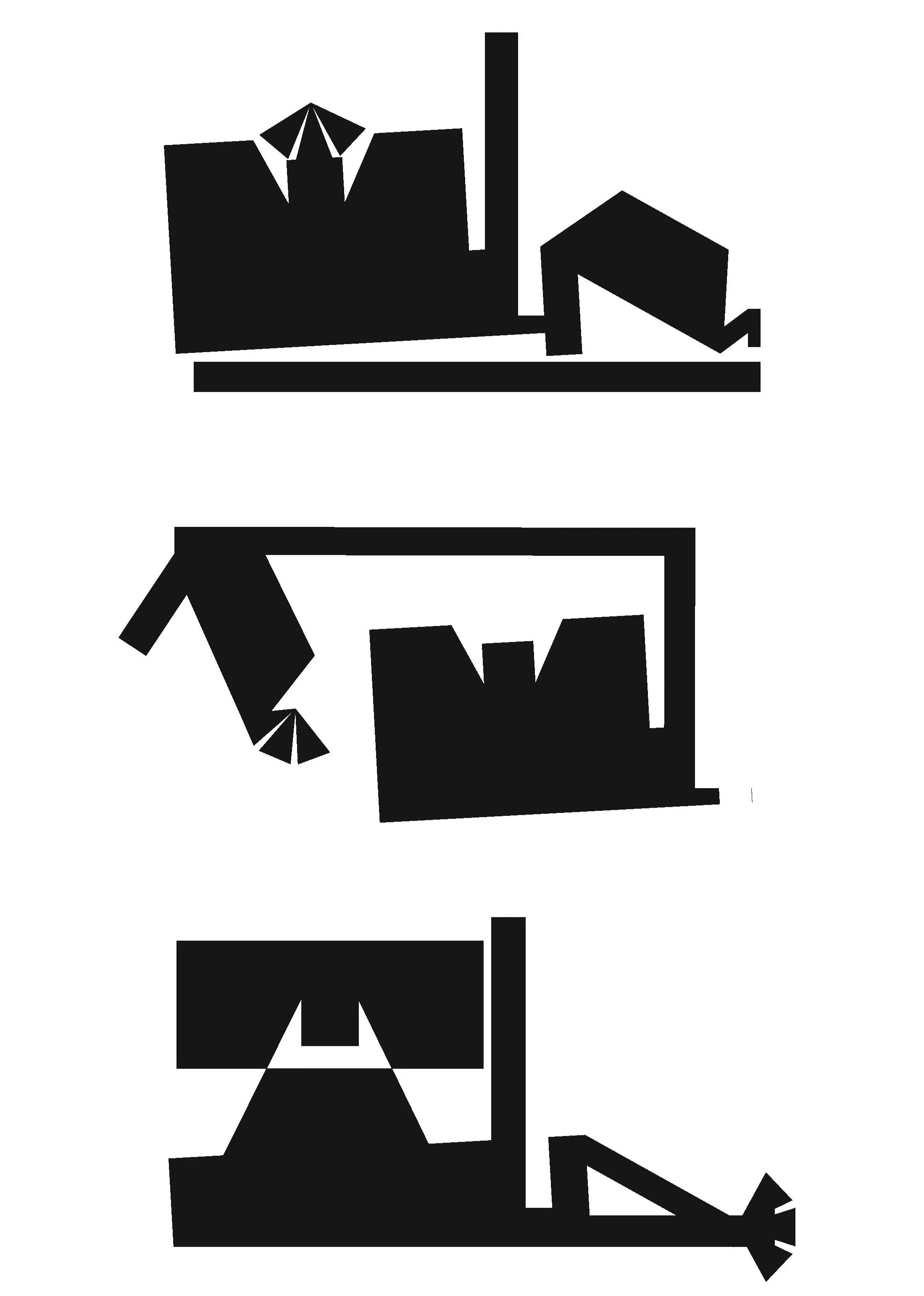

3 HYBRIDIZED FIGURES BASED ON THE ICONS

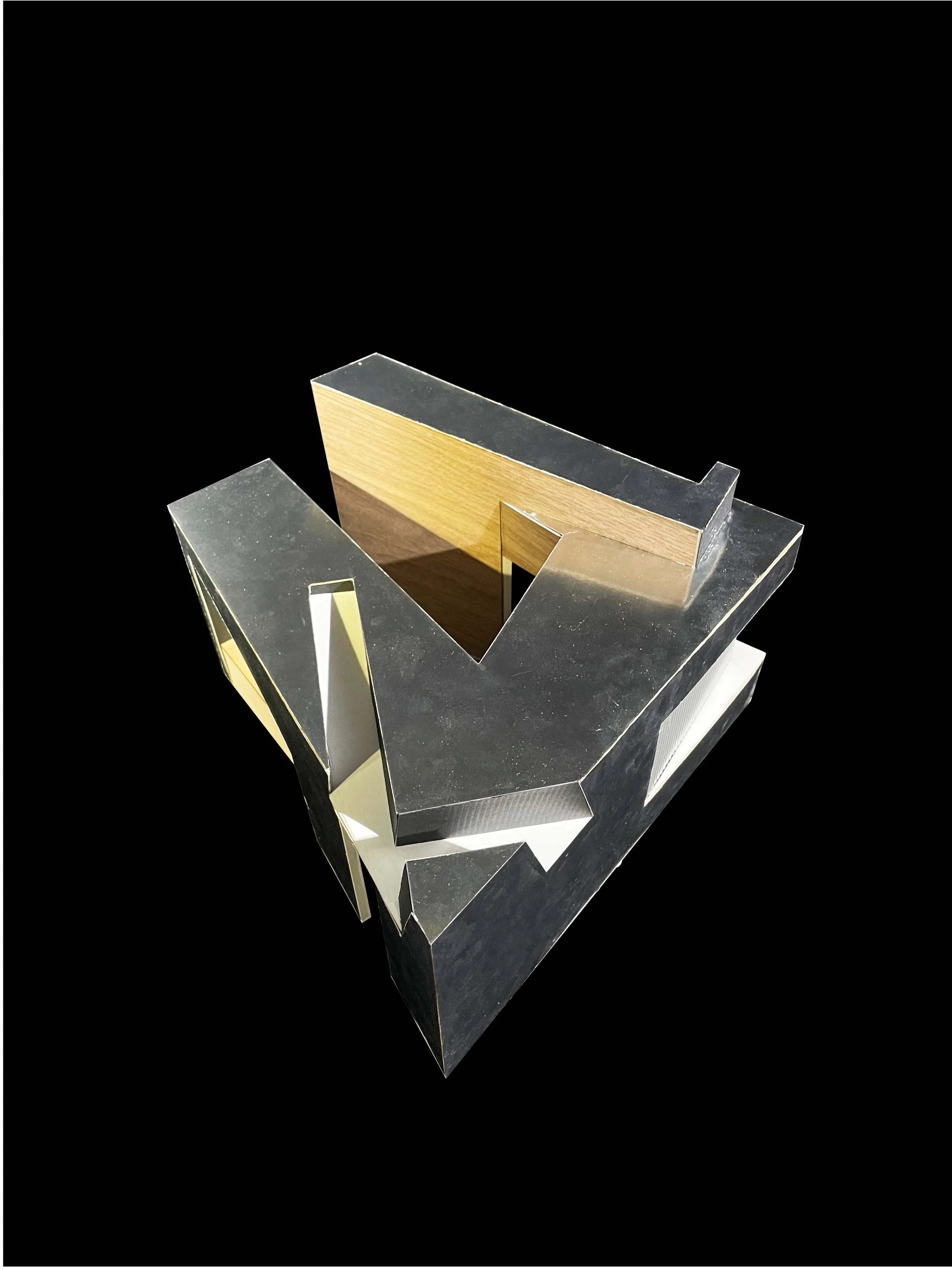

Each hybridized figure then got translated into a three-dimensional object. (max. 20’ x 20’ x 20’)

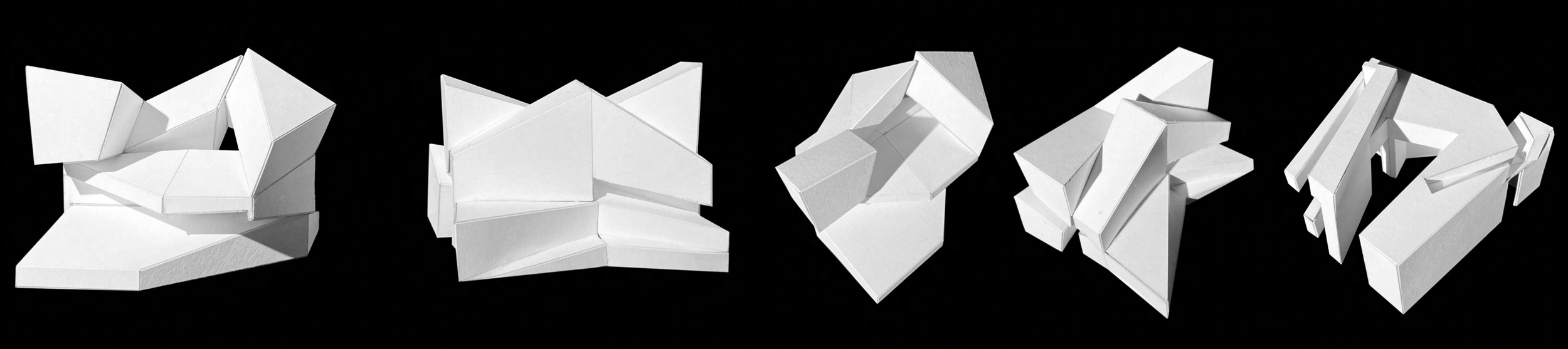

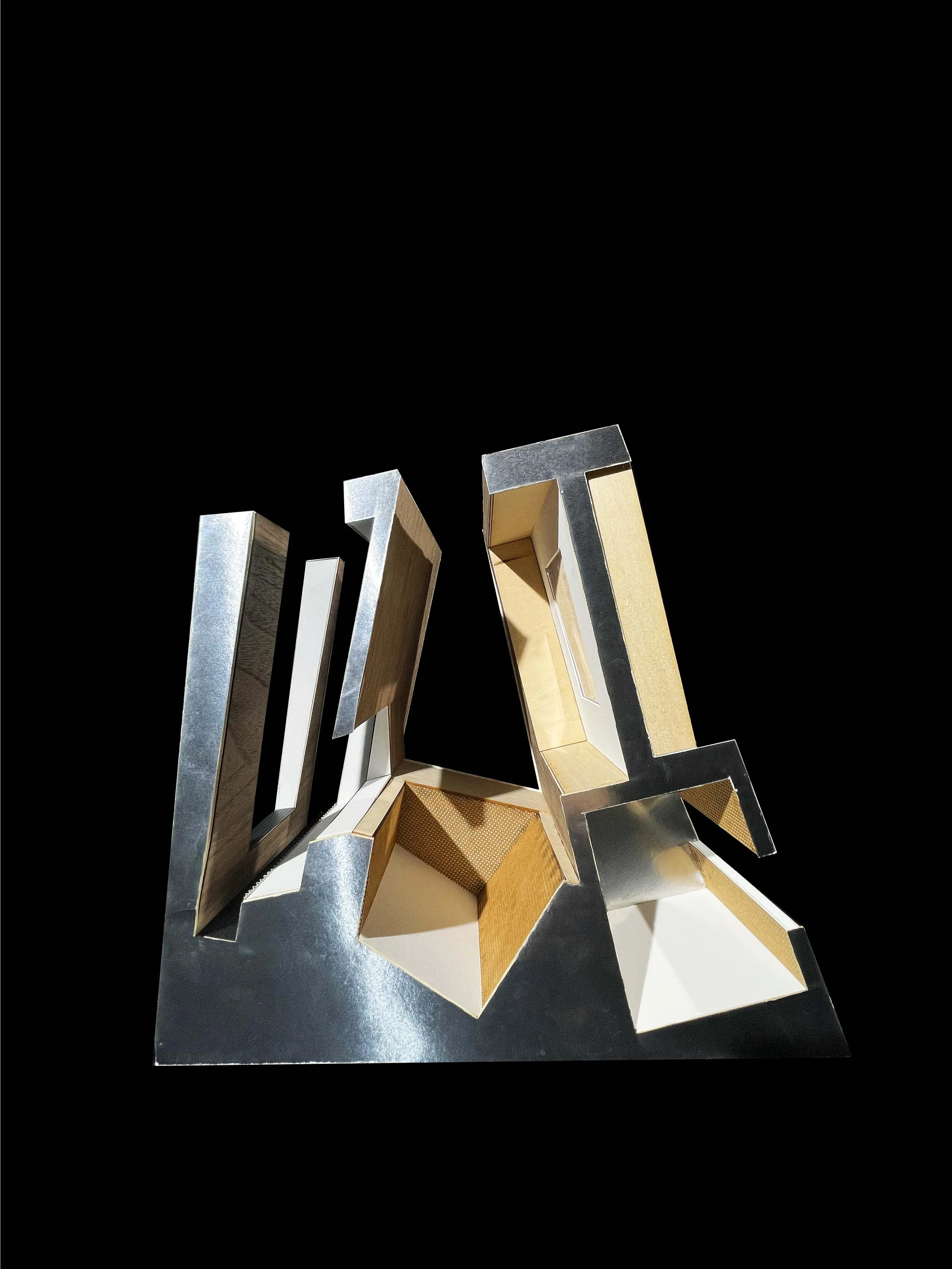

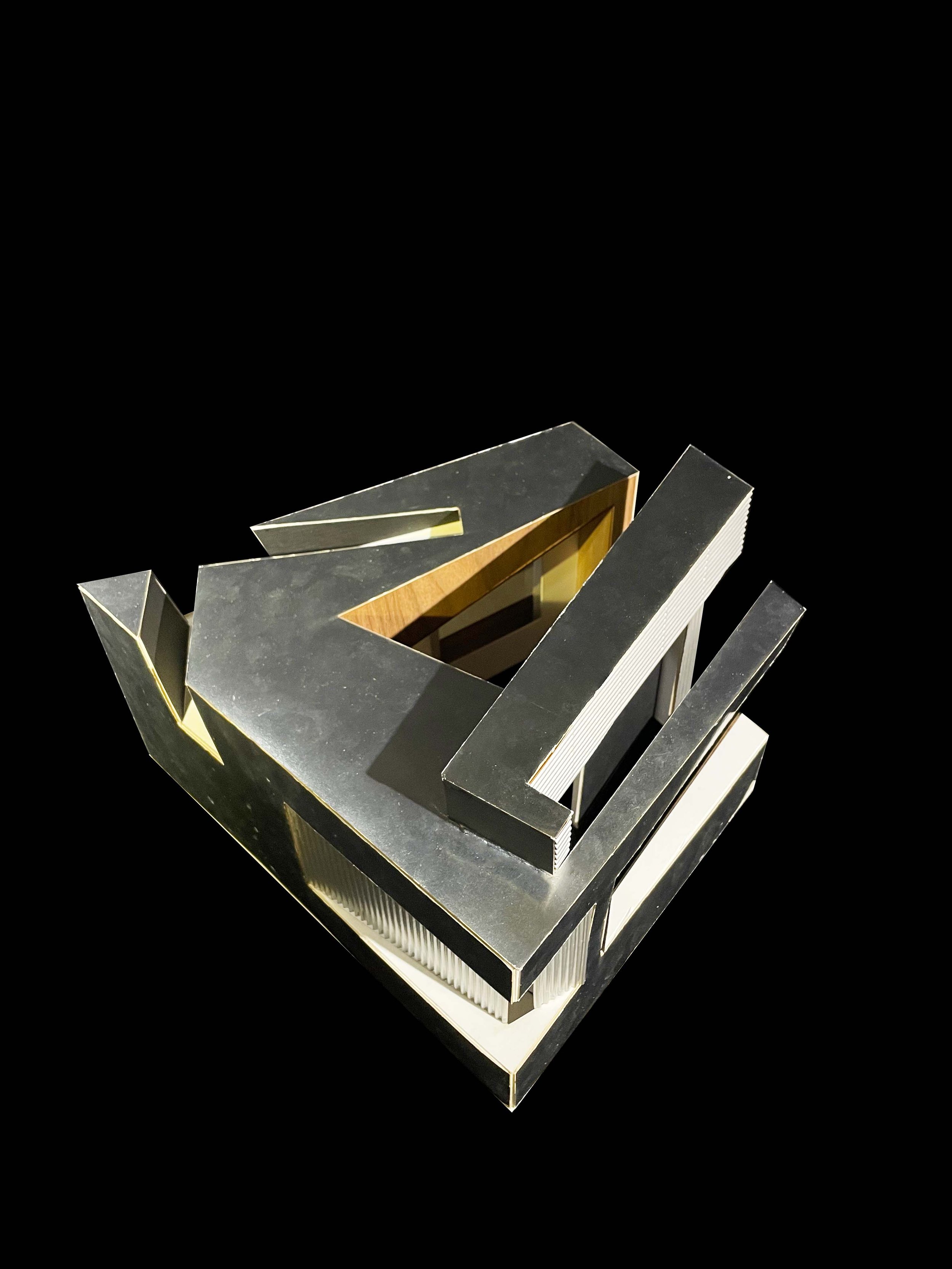

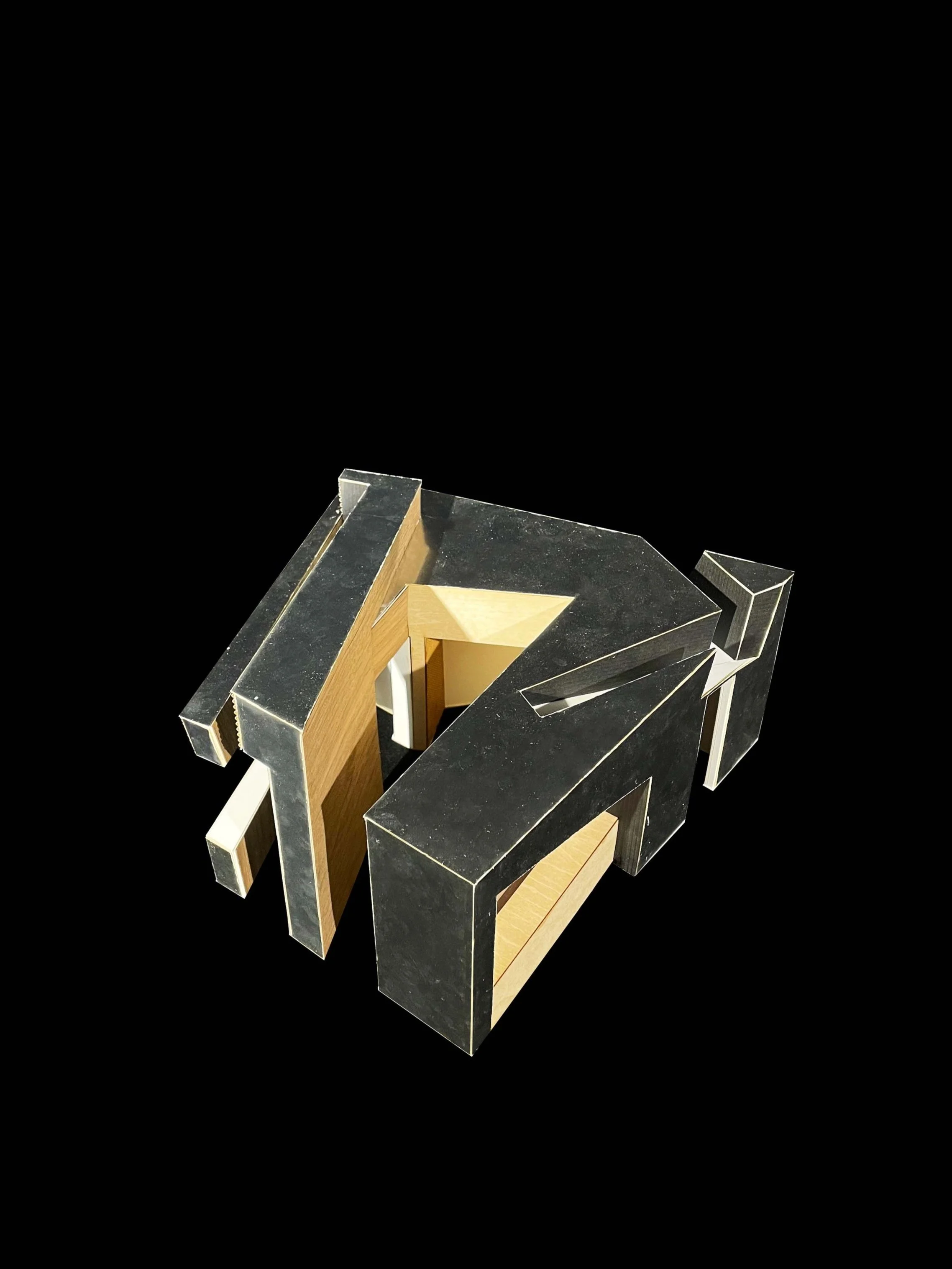

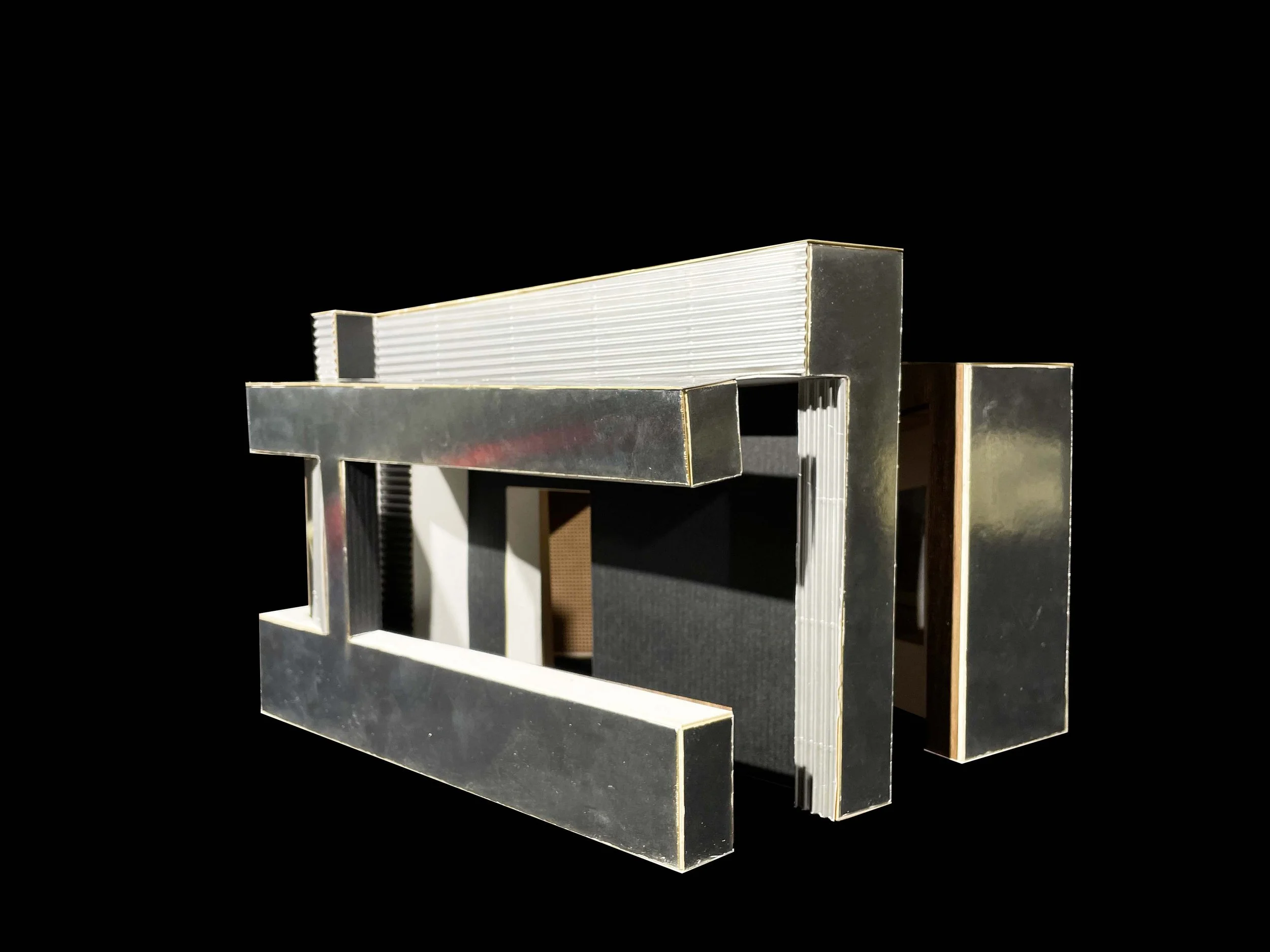

STUDY MODELS
DESIGN
For my concession stand, I decided to make a coffee place as the “duck” representing a coffee machine.
PLAN

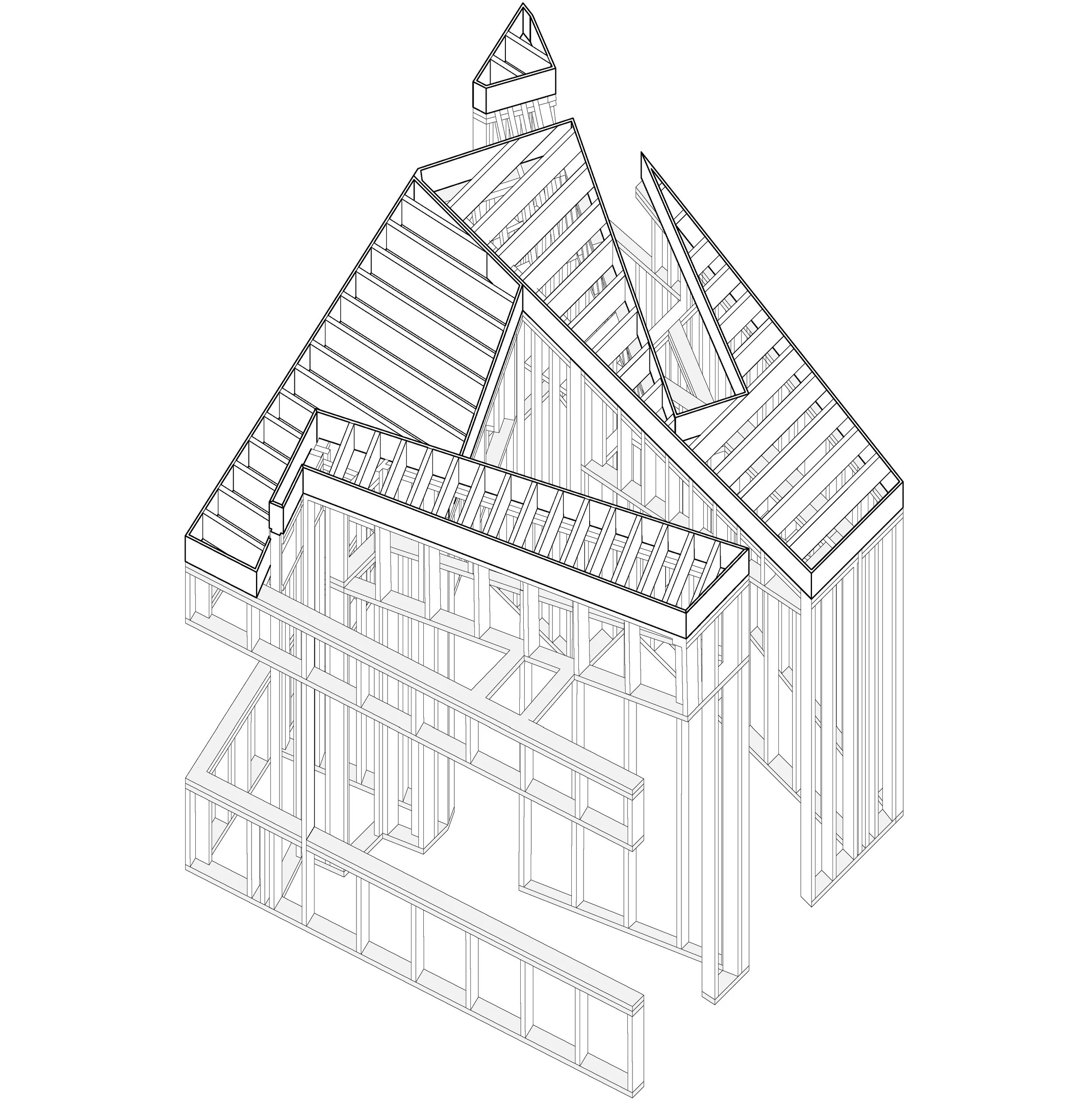

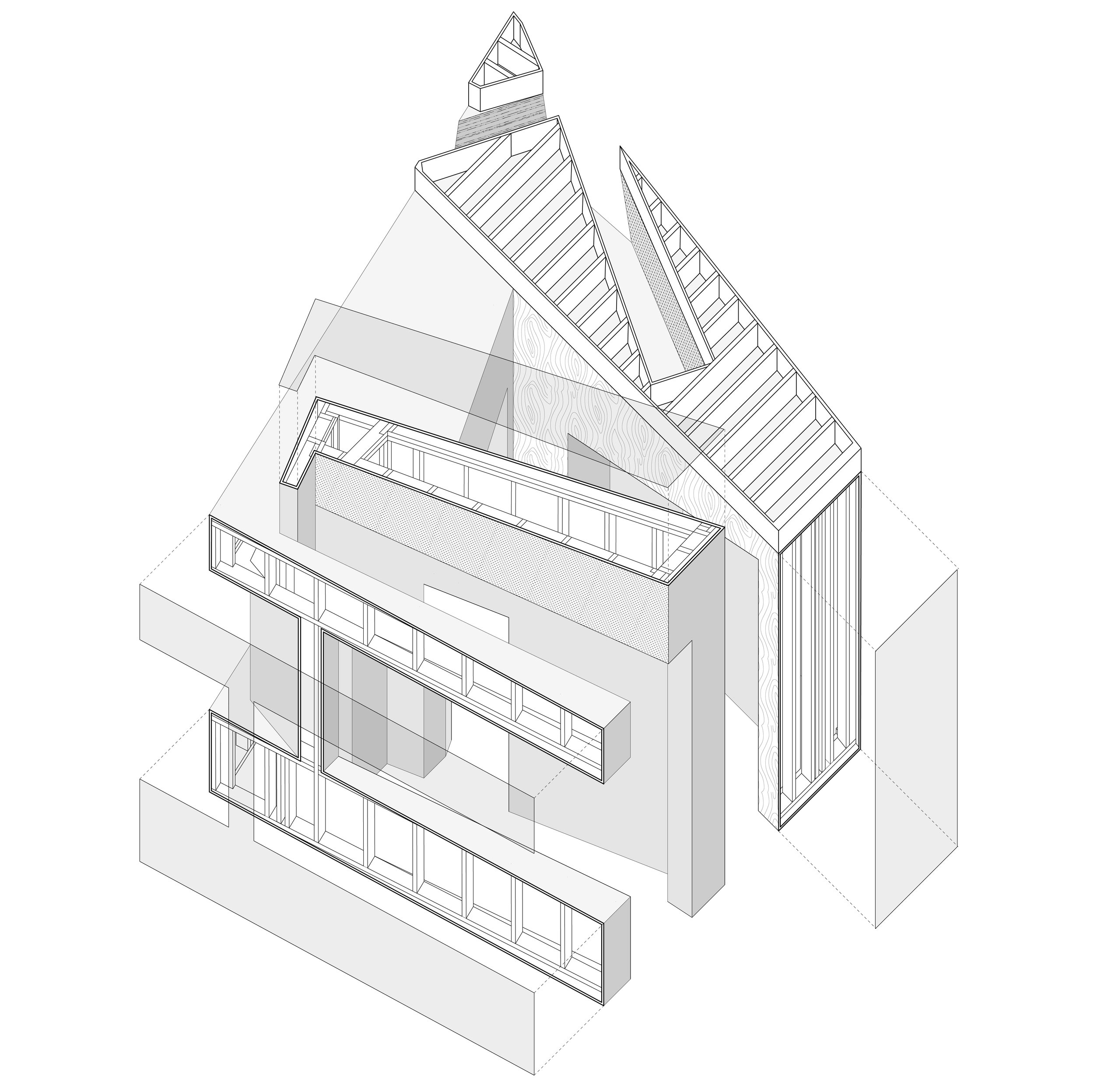

FRAME AND CUT-AWAY OBLIQUE

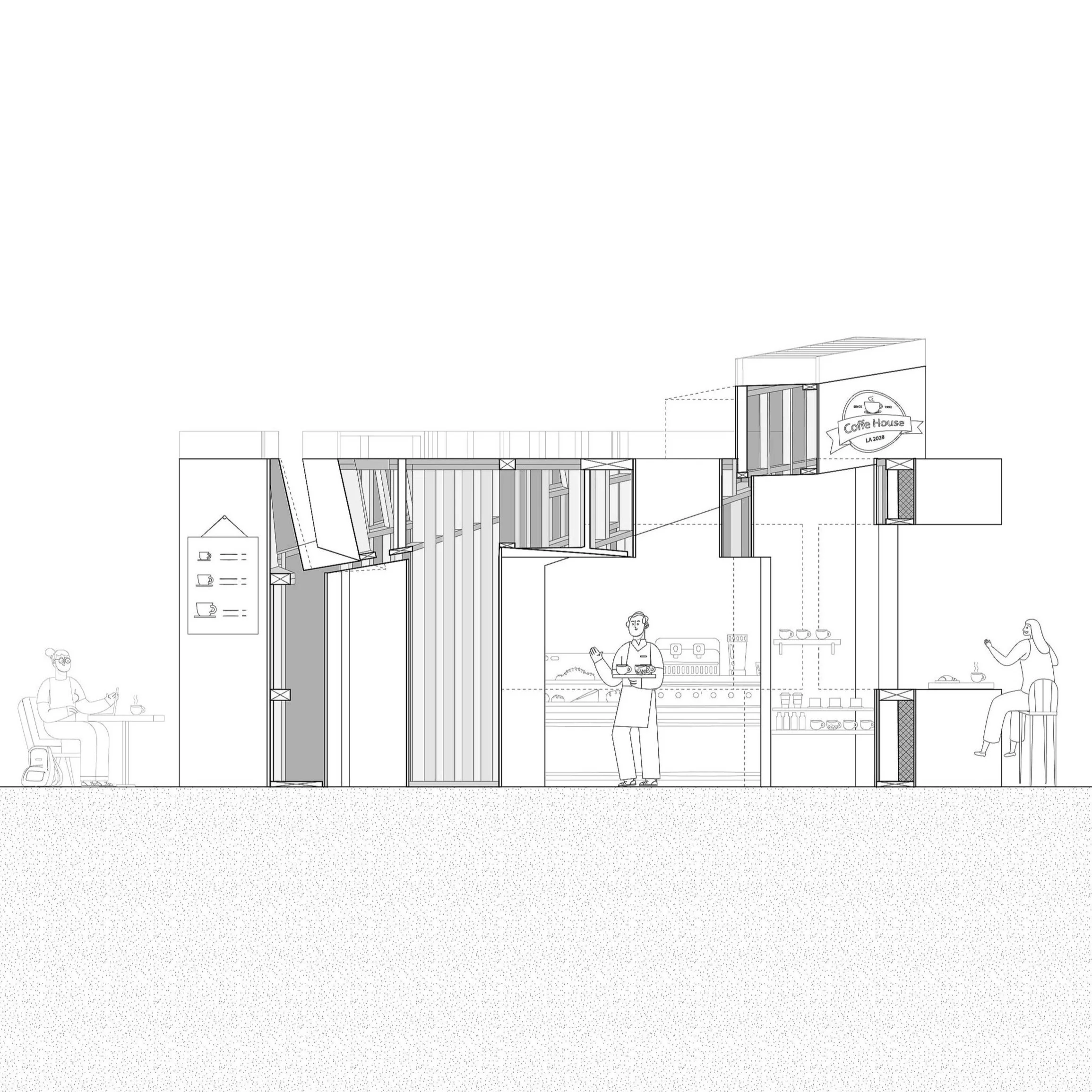

SECTION

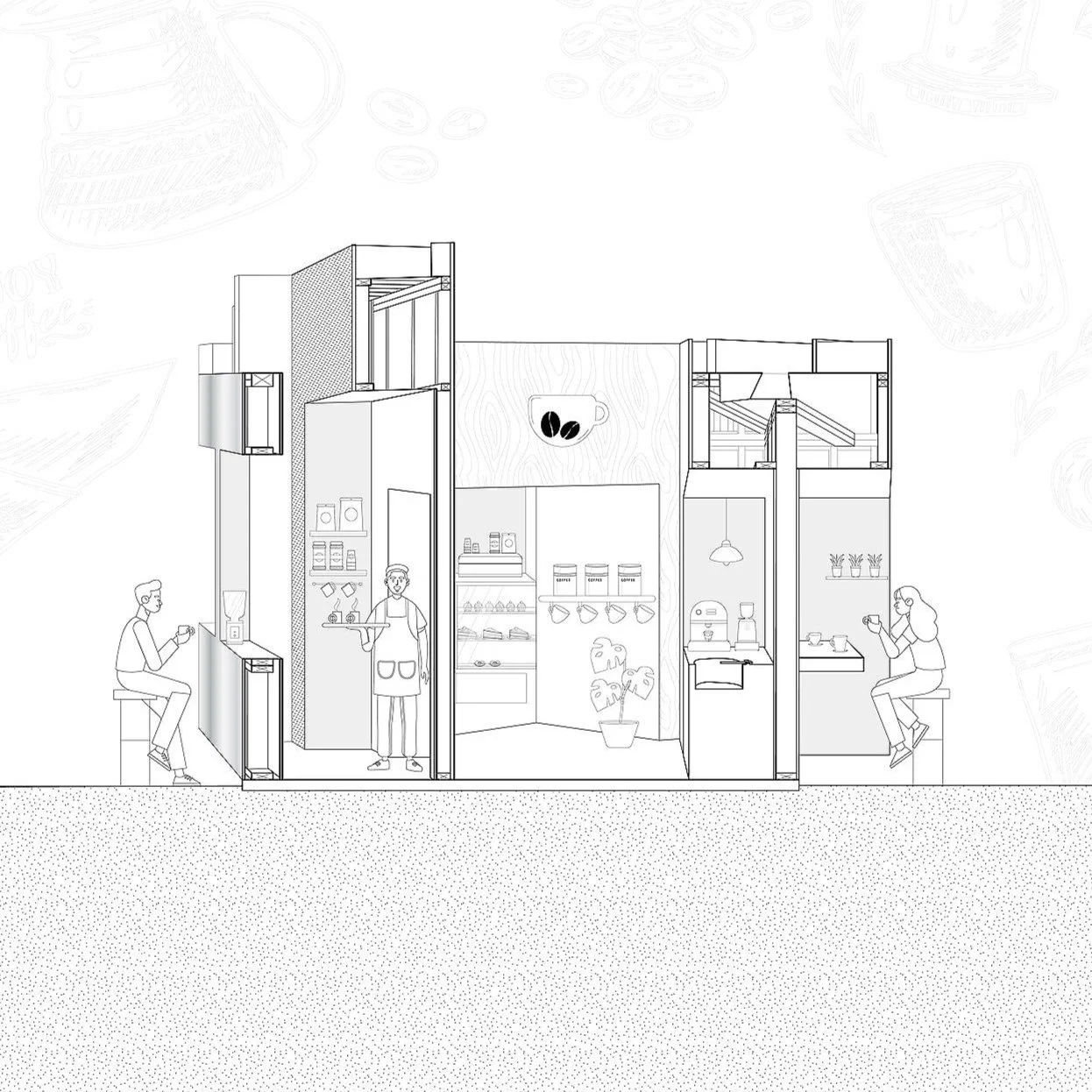

PERSPECTIVE SECTION

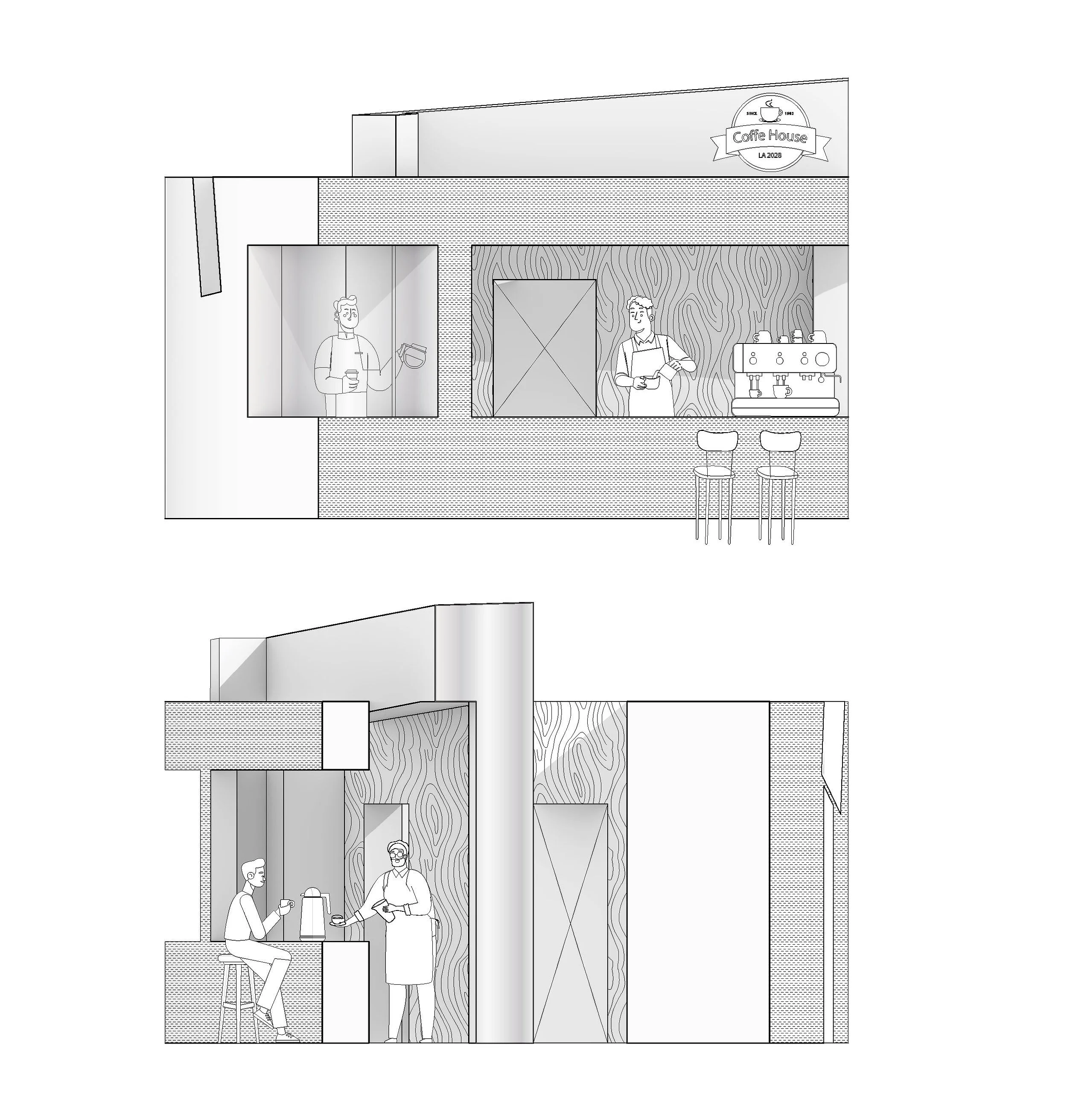

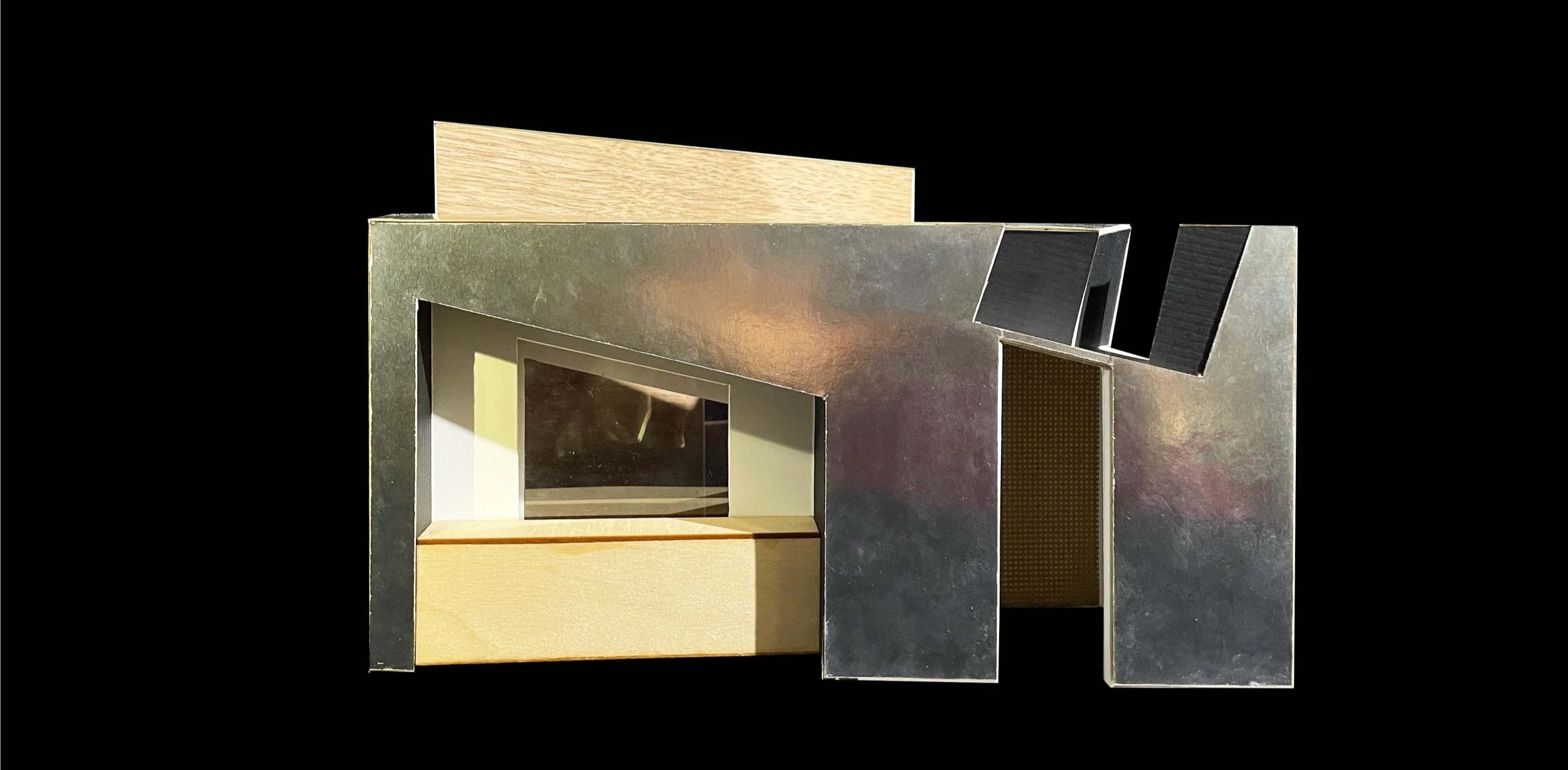

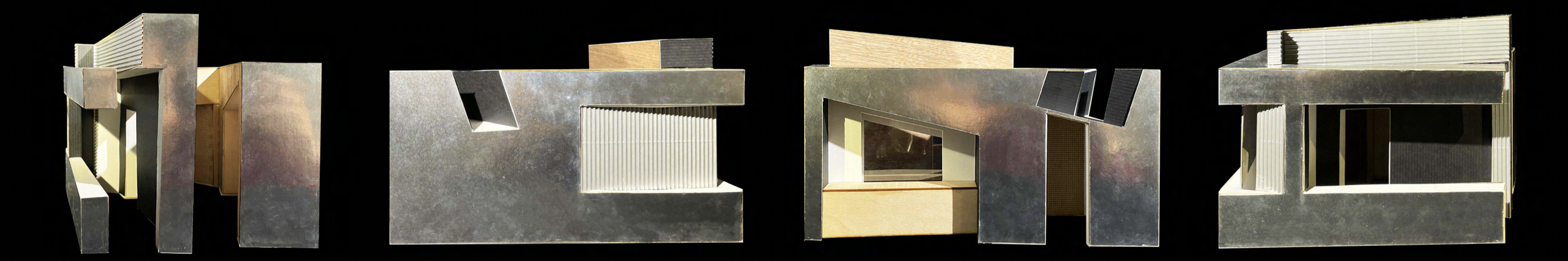

ELEVATIONS
In terms of material, I used metal plates on the exterior for creating resemblance to a coffee machine. In the interest of generating a contrasting experience, I used wood on the interior, which is a reminder of an actual coffee shop or a coffee cup.
